225974-1

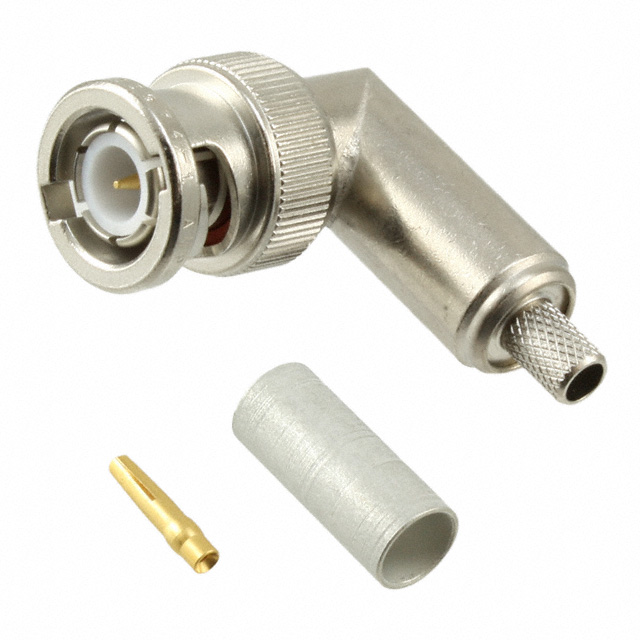

CONN BNC PLUG R/A 50 OHM CRIMPManufacturer: TE Connectivity AMP Connectors
Categories: Coaxial Connector (RF) Assemblies
Quality Control: Learn More
TE Connectivity AMP Connectors BNC Plug, Male Pin, Right Angle Crimp, 50 Ohm impedance. This coaxial connector is designed for robust RF applications, supporting a maximum frequency of 4 GHz. It features a bayonet lock fastening type for secure mating. The center contact is constructed from brass, ensuring reliable signal transmission. This plug is suitable for terminating cables within the RG-58, 58A, 58B, and 58C cable groups. Housing color is silver. Common applications include test and measurement equipment, broadcast, and telecommunications infrastructure. This component is offered in Bulk packaging.
Additional Information
Series: -RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Connector Type | Plug, Male Pin |
| Contact Termination | Crimp |
| Impedance | 50 Ohms |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Cable Group | RG-58, 58A, 58B, 58C |
| Fastening Type | Bayonet Lock |
| Ingress Protection | - |
| Connector Style | BNC |
| Mounting Feature | - |
| Housing Color | Silver |
| Shield Termination | Crimp |
| Center Contact Material | Brass |
| Frequency - Max | 4 GHz |
| Number of Ports | 1 |
