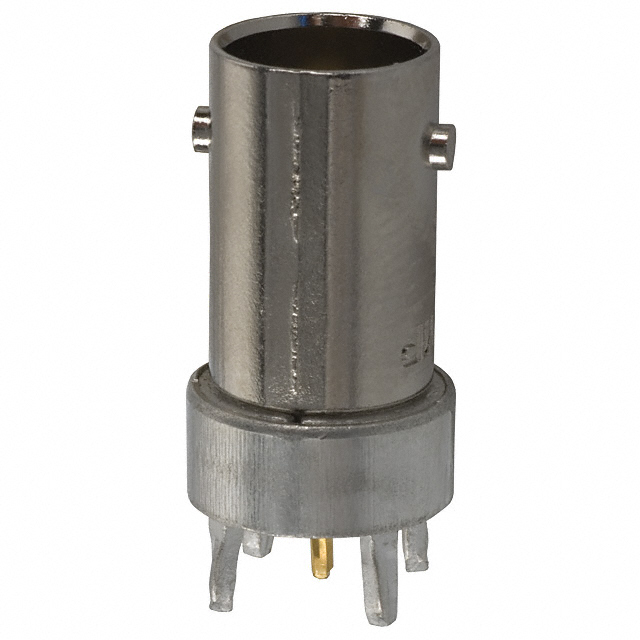

222462-1
CONN BNC JACK STR 75 OHM PCBManufacturer: TE Connectivity AMP Connectors
Categories: Coaxial Connector (RF) Assemblies
Quality Control: Learn More
TE Connectivity AMP Connectors BNC Jack, Female Socket, 75 Ohm, Through Hole, Press-Fit termination. This coaxial connector, part number 222462-1, features a Beryllium Copper center contact and a bayonet lock fastening type. With a maximum frequency rating of 2 GHz, it is suitable for applications requiring robust 75 Ohm impedance. The silver housing and press-fit shield termination ensure reliable signal integrity in demanding environments. Commonly utilized in broadcast, test and measurement, and telecommunications equipment, this connector provides a secure and durable connection for PCB mounting.
Additional Information
Series: -RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Connector Type | Jack, Female Socket |
| Contact Termination | Press-Fit |
| Impedance | 75 Ohms |
| Mounting Type | Through Hole |
| Cable Group | - |
| Fastening Type | Bayonet Lock |
| Ingress Protection | - |
| Connector Style | BNC |
| Mounting Feature | - |
| Housing Color | Silver |
| Shield Termination | Press-Fit |
| Center Contact Material | Beryllium Copper |
| Frequency - Max | 2 GHz |
| Number of Ports | 1 |
