2-5329452-2
CONN BNC JACK STR 50 OHM PUSHManufacturer: TE Connectivity AMP Connectors
Categories: Coaxial Connector (RF) Assemblies
Quality Control: Learn More

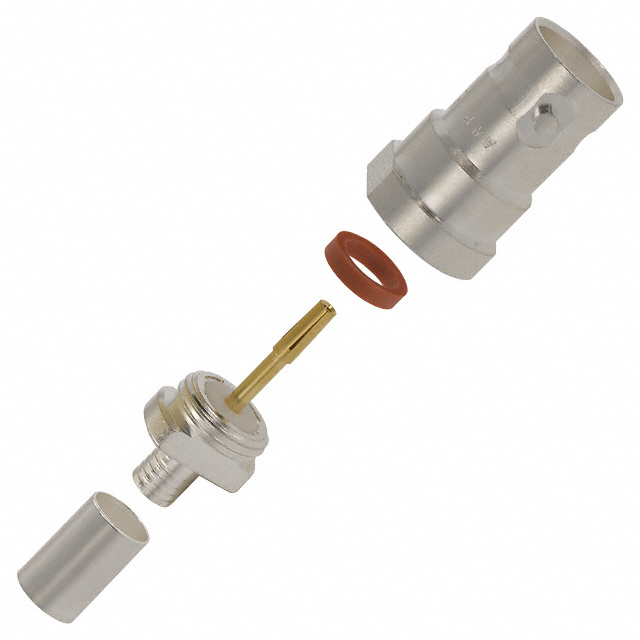

TE Connectivity AMP Connectors 2-5329452-2 is a BNC coaxial connector. This component features a female socket configuration with a 50 Ohm impedance, designed for push-on termination. The center contact is constructed from beryllium copper. This connector supports a maximum frequency of 2.5 GHz and utilizes a bayonet lock for secure mating. It is suitable for inline applications and is compatible with cable groups RG-55, 55A, 55B, 142, 142A, 142B, and 223. Shield termination is achieved via crimp. This component is utilized in various industries requiring reliable RF signal transmission.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Connector Type | Jack, Female Socket |
| Contact Termination | Push On |
| Impedance | 50 Ohms |
| Mounting Type | Free Hanging (In-Line) |
| Cable Group | RG-55, 55A, 55B, 142, 142A, 142B, 223 |
| Fastening Type | Bayonet Lock |
| Ingress Protection | - |
| Connector Style | BNC |
| Mounting Feature | - |
| Housing Color | Silver |
| Shield Termination | Crimp |
| Center Contact Material | Beryllium Copper |
| Frequency - Max | 2.5 GHz |
| Number of Ports | 1 |
