2-5221128-7
CONN BNC PLUG STR 50 OHM CRIMPManufacturer: TE Connectivity AMP Connectors
Categories: Coaxial Connector (RF) Assemblies
Quality Control: Learn More

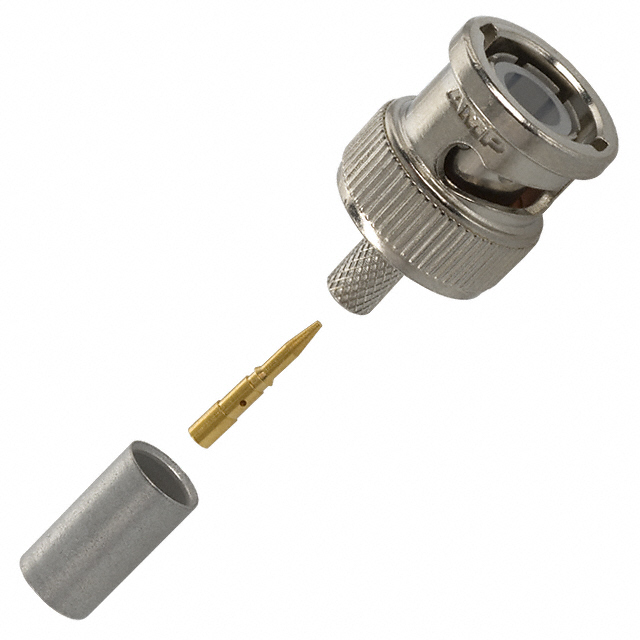

TE Connectivity AMP Connectors BNC Plug, Part Number 2-5221128-7, is a 50 Ohm coaxial connector designed for robust RF signal transmission. This straight plug features a male pin contact and utilizes a bayonet lock for secure mating. Termination is achieved via crimp connections for both the center conductor and shield, ensuring reliable assembly. Engineered for a maximum frequency of 4 GHz, it is compatible with cable groups including RG-141, Belden 89907, and 9907. The connector's center contact is constructed from brass, and its housing is silver in color. Commonly employed in telecommunications, test and measurement equipment, and broadcasting applications, this component facilitates efficient, high-frequency signal routing.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Connector Type | Plug, Male Pin |
| Contact Termination | Crimp |
| Impedance | 50 Ohms |
| Mounting Type | Free Hanging (In-Line) |
| Cable Group | RG-141, Belden 89907, 9907 |
| Fastening Type | Bayonet Lock |
| Ingress Protection | - |
| Connector Style | BNC |
| Mounting Feature | - |
| Housing Color | Silver |
| Shield Termination | Crimp |
| Center Contact Material | Brass |
| Frequency - Max | 4 GHz |
| Number of Ports | 1 |
