2-5221128-3
CONN BNC PLUG STR 50 OHM CRIMPManufacturer: TE Connectivity AMP Connectors
Categories: Coaxial Connector (RF) Assemblies
Quality Control: Learn More

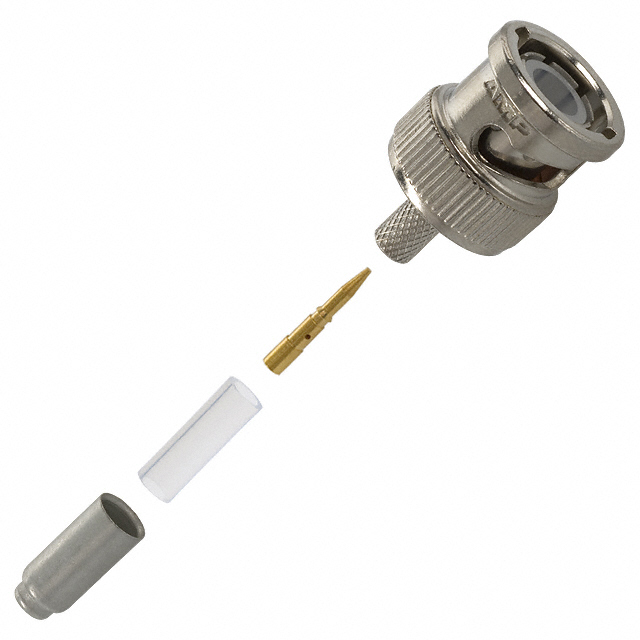

TE Connectivity AMP Connectors’ 2-5221128-3 is a BNC connector plug designed for 50 Ohm coaxial applications. This male pin type features a bayonet lock fastening for secure connection and a crimp termination for both the center contact and shield. Engineered for reliable performance up to 4 GHz, it is suitable for cable groups RG-179 and RG-187. The silver-colored housing and free-hanging (in-line) mounting style make it a practical choice for various RF connectivity needs. This component finds application in industries such as telecommunications, broadcast, and test and measurement equipment.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Connector Type | Plug, Male Pin |
| Contact Termination | Crimp |
| Impedance | 50 Ohms |
| Mounting Type | Free Hanging (In-Line) |
| Cable Group | RG-179, 187 |
| Fastening Type | Bayonet Lock |
| Ingress Protection | - |
| Connector Style | BNC |
| Mounting Feature | - |
| Housing Color | Silver |
| Shield Termination | Crimp |
| Center Contact Material | Brass |
| Frequency - Max | 4 GHz |
| Number of Ports | 1 |
