2-329456-1
CONN BNC JACK STR 50 OHM PUSHManufacturer: TE Connectivity AMP Connectors
Categories: Coaxial Connector (RF) Assemblies
Quality Control: Learn More

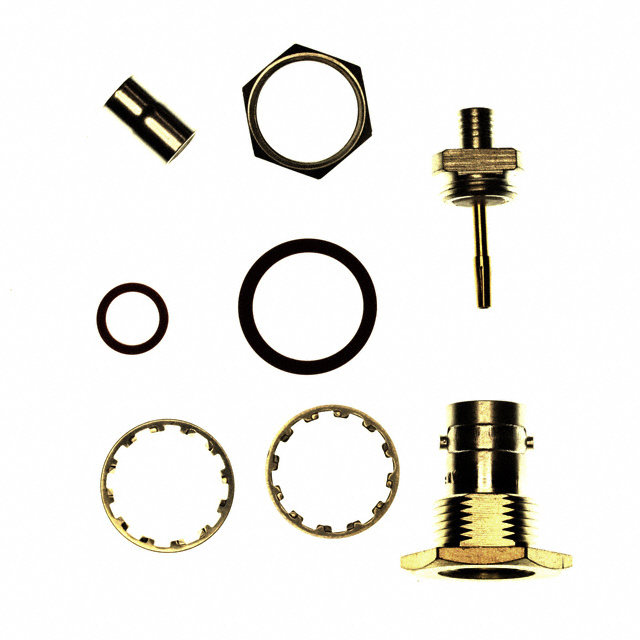

TE Connectivity AMP Connectors 2-329456-1 is a BNC coaxial connector jack, configured as a female socket with a 50 Ohm impedance. This panel mount connector features a push-on contact termination and a bayonet lock fastening type, designed for applications utilizing RG-58, 58A, 58B, and 58C cable groups. The center contact is constructed from beryllium copper, ensuring robust signal integrity up to a maximum frequency of 2.5 GHz. Its bulkhead mounting configuration, with front-side nut, is suitable for secure panel installations. This component finds common use in test and measurement equipment, broadcast industries, and telecommunications infrastructure where reliable RF connectivity is paramount. The connector is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Connector Type | Jack, Female Socket |
| Contact Termination | Push On |
| Impedance | 50 Ohms |
| Mounting Type | Panel Mount |
| Cable Group | RG-58, 58A, 58B, 58C |
| Fastening Type | Bayonet Lock |
| Ingress Protection | - |
| Connector Style | BNC |
| Mounting Feature | Bulkhead - Front Side Nut |
| Housing Color | Silver |
| Shield Termination | Crimp |
| Center Contact Material | Beryllium Copper |
| Frequency - Max | 2.5 GHz |
| Number of Ports | 1 |
