1470511-1

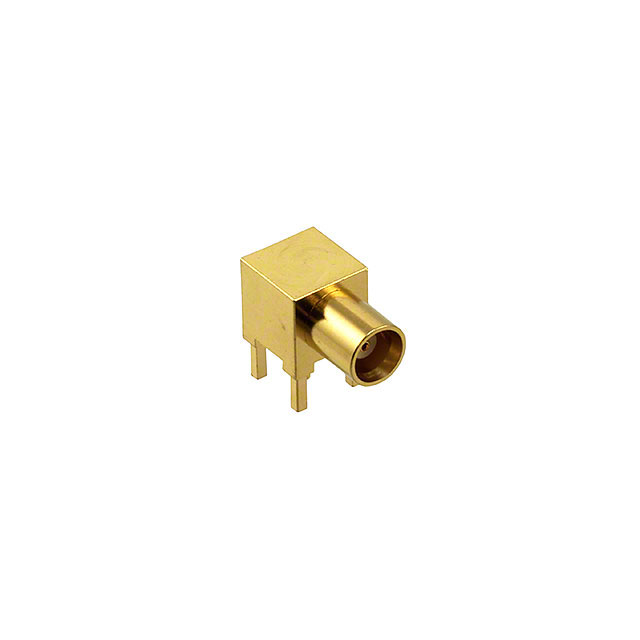

CONN MCX JACK R/A 50 OHM PCBManufacturer: TE Connectivity AMP Connectors
Categories: Coaxial Connector (RF) Assemblies
Quality Control: Learn More
TE Connectivity AMP Connectors MCX Jack, Right Angle, 50 Ohm, Solder termination for PCB mounting. This RF coaxial connector features a snap-on fastening type and a gold housing color, designed for reliable signal integrity up to 6 GHz. Its through-hole mounting configuration with a right-angle orientation makes it suitable for compact board designs. Commonly utilized in telecommunications, test and measurement, and broadcast equipment, this component ensures robust connectivity in demanding applications.
Additional Information
Series: -RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Connector Type | Jack, Female Socket |
| Contact Termination | Solder |
| Impedance | 50 Ohms |
| Mounting Type | Through Hole, Right Angle |
| Cable Group | - |
| Fastening Type | Snap-On |
| Ingress Protection | - |
| Connector Style | MCX |
| Mounting Feature | - |
| Housing Color | Gold |
| Shield Termination | Solder |
| Center Contact Material | - |
| Frequency - Max | 6 GHz |
| Number of Ports | 1 |
