1408346-1
CONN QMA PLUG STR 50 OHM SOLDERManufacturer: TE Connectivity AMP Connectors
Categories: Coaxial Connector (RF) Assemblies
Quality Control: Learn More

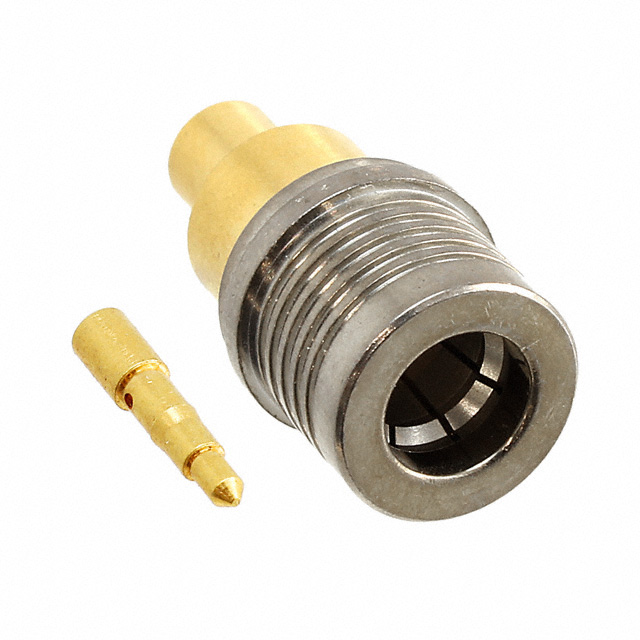

TE Connectivity AMP Connectors QMA Plug, Part Number 1408346-1, is a coaxial RF connector designed for 50 Ohm impedance applications. This straight, male pin connector features a snap-on fastening type for secure mating and a solder termination for both the pin and shield. Engineered for use with RG-402 (.141" Semi Rigid) cable groups, it offers a maximum operating frequency of 6 GHz. The brass center contact and gold housing contribute to its robust performance. This component is commonly utilized in telecommunications, defense, and aerospace industries requiring reliable RF signal transmission.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Connector Type | Plug, Male Pin |
| Contact Termination | Solder |
| Impedance | 50 Ohms |
| Mounting Type | Free Hanging (In-Line) |
| Cable Group | RG-402 (.141"" Semi Rigid) |
| Fastening Type | Snap-On |
| Ingress Protection | - |
| Connector Style | QMA |
| Mounting Feature | - |
| Housing Color | Gold |
| Shield Termination | Solder |
| Center Contact Material | Brass |
| Frequency - Max | 6 GHz |
| Number of Ports | 1 |
