1274595-1

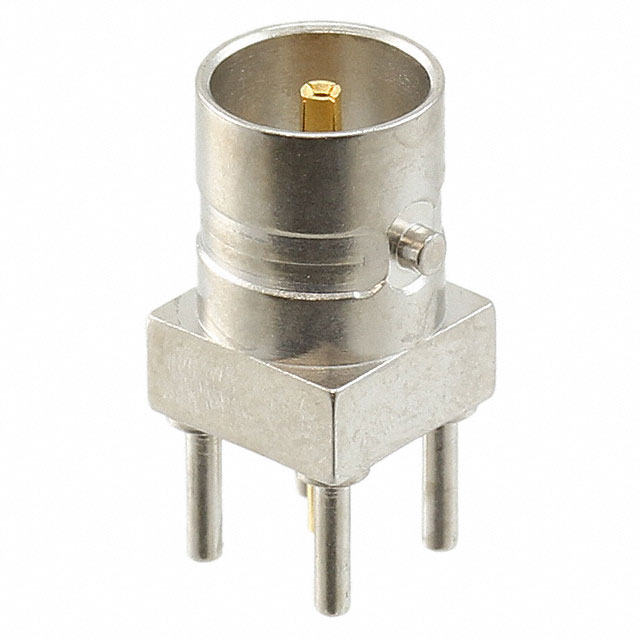

CONN MINI BNC JACK STR 75OHM PCBManufacturer: TE Connectivity AMP Connectors
Categories: Coaxial Connector (RF) Assemblies
Quality Control: Learn More
TE Connectivity AMP Connectors offers the 1274595-1, a Mini BNC jack designed for 75-ohm impedance applications. This through-hole solder termination component features a bayonet lock fastening type and a female socket connector. With a maximum frequency rating of 2 GHz, it is suitable for use in the broadcast, telecommunications, and industrial automation sectors. The silver-colored housing and phosphor bronze center contact material ensure reliable performance. This electronic component is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Connector Type | Jack, Female Socket |
| Contact Termination | Solder |
| Impedance | 75 Ohms |
| Mounting Type | Through Hole |
| Cable Group | - |
| Fastening Type | Bayonet Lock |
| Ingress Protection | - |
| Connector Style | BNC, Mini |
| Mounting Feature | - |
| Housing Color | Silver |
| Shield Termination | Solder |
| Center Contact Material | Phosphor Bronze |
| Frequency - Max | 2 GHz |
| Number of Ports | 1 |
