1274568-1
CONN MINI BNC JCK STR 75 OHMManufacturer: TE Connectivity AMP Connectors
Categories: Coaxial Connector (RF) Assemblies
Quality Control: Learn More

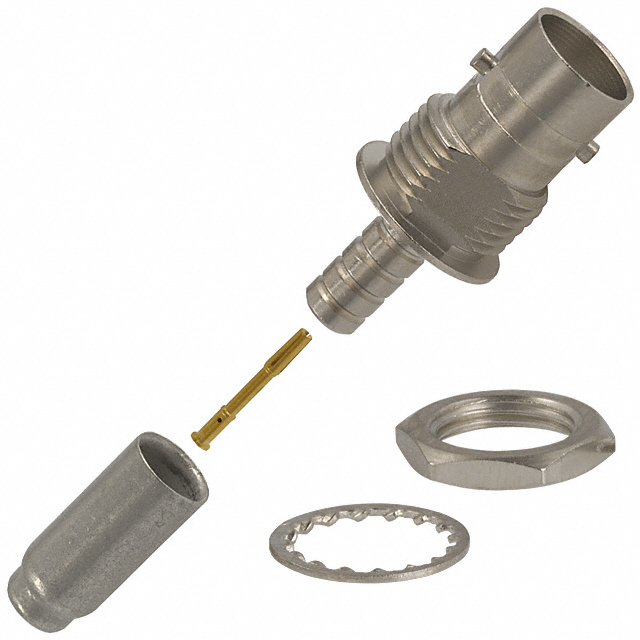

TE Connectivity AMP Connectors offers the 1274568-1, a Mini BNC jack connector. This 75 Ohm coaxial connector features a straight, panel mount design with a bayonet lock fastening type. The center contact is constructed from phosphor bronze, and termination is achieved via crimp. Designed for bulkhead mounting with a front side nut, this component supports frequencies up to 2 GHz. It is suitable for applications within the broadcast, telecommunications, and test and measurement industries where reliable impedance matching is critical. The connector is supplied in tray packaging.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Connector Type | Jack, Female Socket |
| Contact Termination | Crimp |
| Impedance | 75 Ohms |
| Mounting Type | Panel Mount |
| Cable Group | AT&T 735A |
| Fastening Type | Bayonet Lock |
| Ingress Protection | - |
| Connector Style | BNC, Mini |
| Mounting Feature | Bulkhead - Front Side Nut |
| Housing Color | Silver |
| Shield Termination | Crimp |
| Center Contact Material | Phosphor Bronze |
| Frequency - Max | 2 GHz |
| Number of Ports | 1 |
