1061027-1
CONN MCX RCPT R/A 50 OHM PCBManufacturer: TE Connectivity AMP Connectors
Categories: Coaxial Connector (RF) Assemblies
Quality Control: Learn More

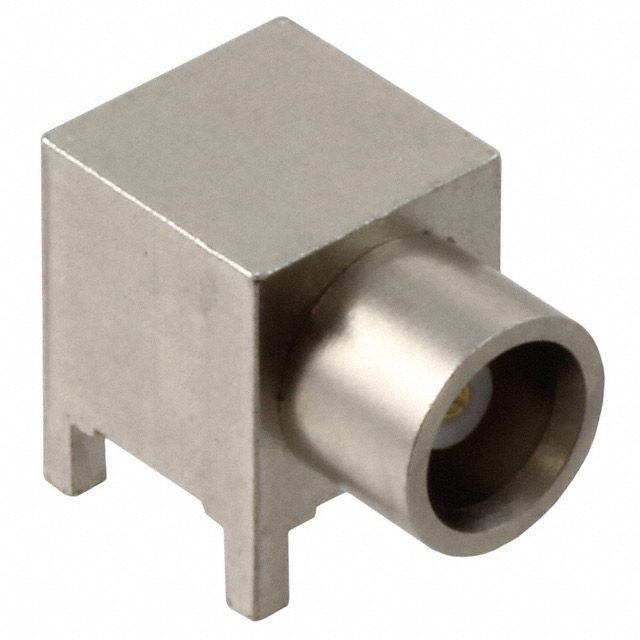

TE Connectivity AMP Connectors MCX Receptacle, 1061027-1. This right-angle, through-hole mounted coaxial connector features a 50 Ohm impedance and a snap-on fastening type. The center contact is constructed from Beryllium Copper for reliable performance. Designed for PCB termination via solder, this female socket connector supports frequencies up to 6 GHz. Its silver housing offers a durable finish. Applications for this component are found in telecommunications, test and measurement, and industrial equipment sectors.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Connector Type | Receptacle, Female Socket |
| Contact Termination | Solder |
| Impedance | 50 Ohms |
| Mounting Type | Through Hole, Right Angle |
| Cable Group | - |
| Fastening Type | Snap-On |
| Ingress Protection | - |
| Connector Style | MCX |
| Mounting Feature | - |
| Housing Color | Silver |
| Shield Termination | Solder |
| Center Contact Material | Beryllium Copper |
| Frequency - Max | 6 GHz |
| Number of Ports | 1 |
