1058016-1
CONN BNC RCPT STR 50 OHM SOLDERManufacturer: TE Connectivity AMP Connectors
Categories: Coaxial Connector (RF) Assemblies
Quality Control: Learn More

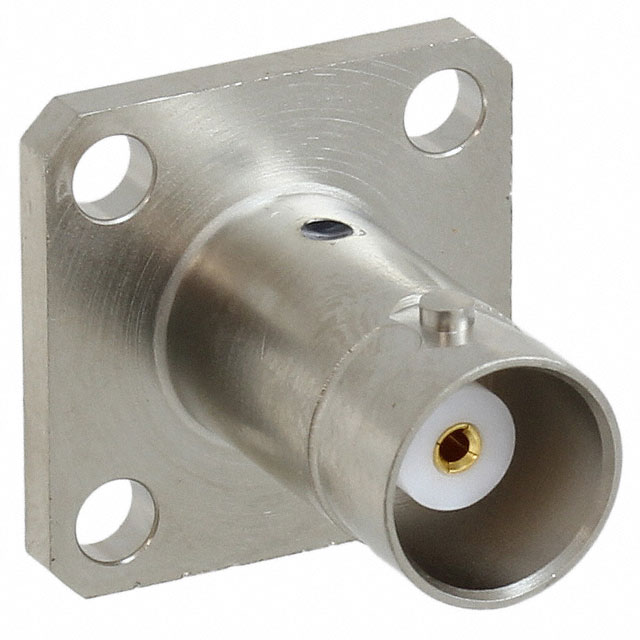

TE Connectivity AMP Connectors 1058016-1 is a BNC coaxial connector. This female socket features a 50 Ohm impedance and a maximum frequency rating of 4 GHz. The center contact is constructed from Beryllium Copper for optimal conductivity. Designed for panel mounting, this connector utilizes a bayonet lock fastening mechanism and offers extended insulation for enhanced performance. Contact termination is achieved via solder, and shield termination is also solder. This component is suitable for applications in telecommunications, test and measurement equipment, and broadcast systems. It is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Extended Insulation |
| Packaging | Bulk |
| Connector Type | Jack, Female Socket |
| Contact Termination | Solder |
| Impedance | 50 Ohms |
| Mounting Type | Panel Mount |
| Cable Group | - |
| Fastening Type | Bayonet Lock |
| Ingress Protection | - |
| Connector Style | BNC |
| Mounting Feature | Flange |
| Housing Color | Silver |
| Shield Termination | Solder |
| Center Contact Material | Beryllium Copper |
| Frequency - Max | 4 GHz |
| Number of Ports | 1 |
