1057243-1
CONN N PLUG STR 50 OHM SOLDERManufacturer: TE Connectivity AMP Connectors
Categories: Coaxial Connector (RF) Assemblies
Quality Control: Learn More

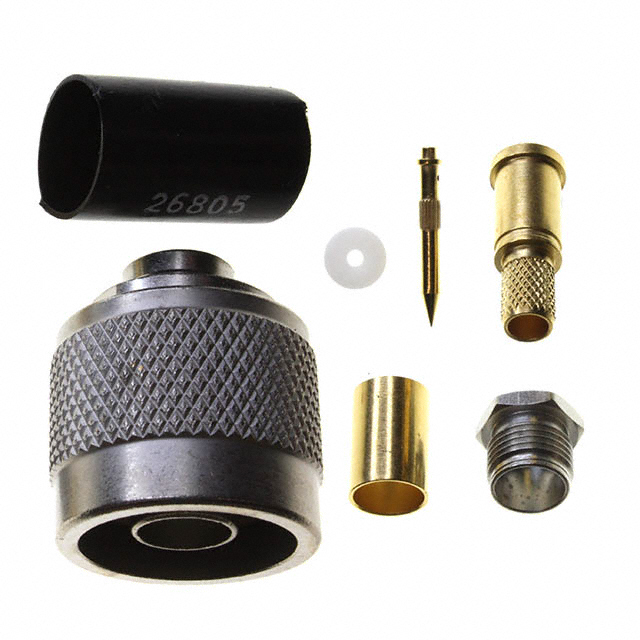

TE Connectivity AMP Connectors presents the 1057243-1, an N Type coaxial connector plug. This component features a male pin configuration and a 50-ohm impedance, designed for robust RF performance up to 11 GHz. The connector offers solder termination for its center contact, ensuring a reliable connection, while the shield termination utilizes a crimp method. It is compatible with cable groups RG-55, RG-142, RG-223, and RG-400. The threaded fastening type provides a secure mated connection. This free-hanging (in-line) mountable component is suitable for applications in telecommunications, aerospace, and military systems where high-frequency signal integrity is critical. The housing is silver in color and the component is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Connector Type | Plug, Male Pin |
| Contact Termination | Solder |
| Impedance | 50 Ohms |
| Mounting Type | Free Hanging (In-Line) |
| Cable Group | RG-55, 142, 223, 400 |
| Fastening Type | Threaded |
| Ingress Protection | - |
| Connector Style | N Type |
| Mounting Feature | - |
| Housing Color | Silver |
| Shield Termination | Crimp |
| Center Contact Material | Brass |
| Frequency - Max | 11 GHz |
| Number of Ports | 1 |
