1056462-1
CONN SMA PLUG R/A 50 OHM SOLDERManufacturer: TE Connectivity AMP Connectors
Categories: Coaxial Connector (RF) Assemblies
Quality Control: Learn More

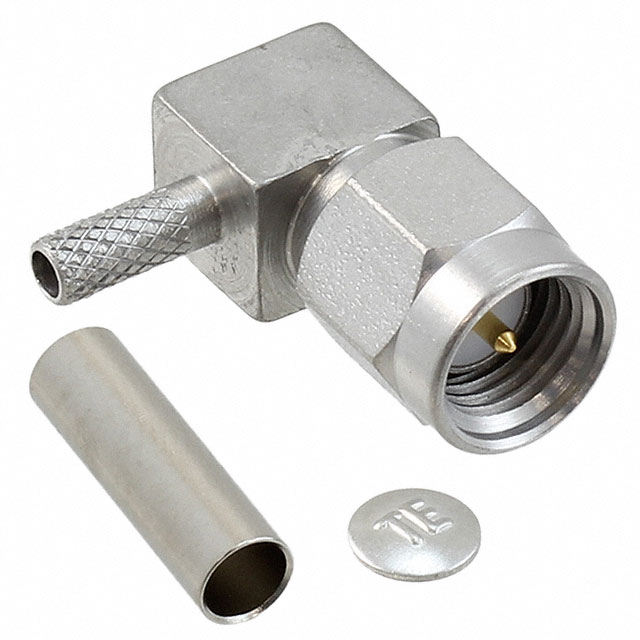

TE Connectivity AMP Connectors SMA Plug, Right Angle Connector, Part Number 1056462-1. This RF coaxial connector features a male pin configuration with a 50 Ohm impedance, designed for solder termination. It is suitable for use with cable groups RG-174, 188, and 316. The connector offers a maximum operating frequency of 12.4 GHz and a threaded fastening type. Its silver housing and free-hanging, in-line mounting style make it a versatile component. This part is commonly utilized in telecommunications, aerospace, and defense industries where reliable high-frequency signal transmission is critical.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Connector Type | Plug, Male Pin |
| Contact Termination | Solder |
| Impedance | 50 Ohms |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Cable Group | RG-174, 188, 316 |
| Fastening Type | Threaded |
| Ingress Protection | - |
| Connector Style | SMA |
| Mounting Feature | - |
| Housing Color | Silver |
| Shield Termination | Crimp |
| Center Contact Material | Brass |
| Frequency - Max | 12.4 GHz |
| Number of Ports | 1 |
