1053222-1
CONN SMA RCPT STR 50 OHM SOLDERManufacturer: TE Connectivity AMP Connectors
Categories: Coaxial Connector (RF) Assemblies
Quality Control: Learn More

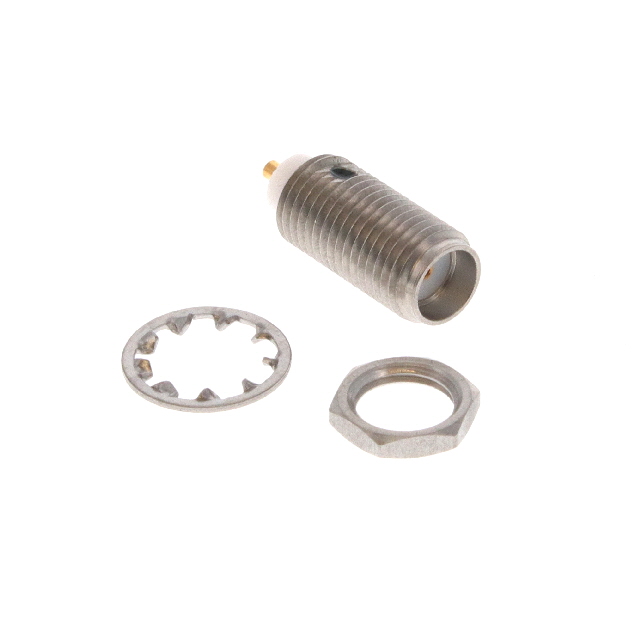

TE Connectivity AMP Connectors SMA Receptacle, Female Socket, Part Number 1053222-1. This coaxial RF connector features a 50 Ohm impedance and a threaded fastening type with bulkhead mounting for front or rear side nut installation. The center contact is constructed from Beryllium Copper for reliable conductivity. Designed for solder termination of both the contact and shield, this connector supports operation up to a maximum frequency of 18 GHz. Its silver housing color and extended insulation contribute to robust performance. This component is commonly utilized in telecommunications, defense, and test and measurement equipment.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Extended Insulation |
| Packaging | Bulk |
| Connector Type | Receptacle, Female Socket |
| Contact Termination | Solder |
| Impedance | 50 Ohms |
| Mounting Type | Panel Mount |
| Cable Group | - |
| Fastening Type | Threaded |
| Ingress Protection | - |
| Connector Style | SMA |
| Mounting Feature | Bulkhead - Front or Rear Side Nut |
| Housing Color | Silver |
| Shield Termination | Solder |
| Center Contact Material | Beryllium Copper |
| Frequency - Max | 18 GHz |
| Number of Ports | 1 |
Request a Quote
