1053221-1
CONN SMA RCPT STR 50 OHM SOLDERManufacturer: TE Connectivity AMP Connectors
Categories: Coaxial Connector (RF) Assemblies
Quality Control: Learn More

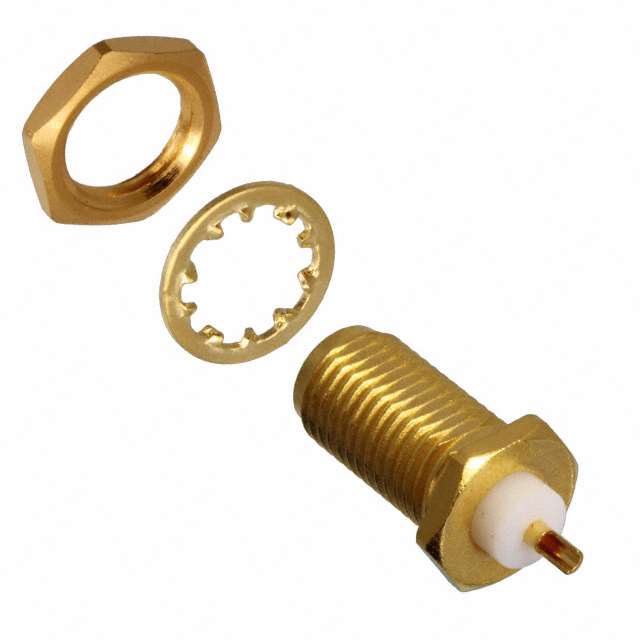

TE Connectivity AMP Connectors SMA Receptacle, Part Number 1053221-1, is a coaxial connector designed for 50 Ohm impedance applications up to 18 GHz. This panel mount receptacle features a threaded fastening type and a bulkhead mounting feature, allowing for front or rear side nut installation. The center contact is constructed from beryllium copper, ensuring robust conductivity. Termination is achieved via solder, suitable for secure cable connections. The housing is gold colored, and the component includes an extended insulation feature for enhanced performance. This connector is widely utilized in telecommunications, aerospace, and defense industries where reliable high-frequency signal integrity is critical.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Extended Insulation |
| Packaging | Bulk |
| Connector Type | Receptacle, Female Socket |
| Contact Termination | Solder |
| Impedance | 50 Ohms |
| Mounting Type | Panel Mount |
| Cable Group | - |
| Fastening Type | Threaded |
| Ingress Protection | - |
| Connector Style | SMA |
| Mounting Feature | Bulkhead - Front or Rear Side Nut |
| Housing Color | Gold |
| Shield Termination | Solder |
| Center Contact Material | Beryllium Copper |
| Frequency - Max | 18 GHz |
| Number of Ports | 1 |
