1052646-1
CONN SMA RCPT STR 50OHM COMPRESSManufacturer: TE Connectivity AMP Connectors
Categories: Coaxial Connector (RF) Assemblies
Quality Control: Learn More

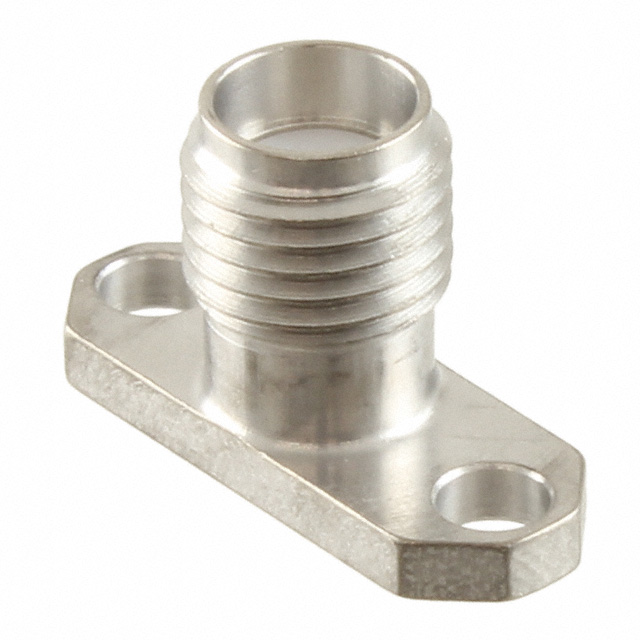

TE Connectivity AMP Connectors 1052646-1 is a coaxial RF connector, specifically an SMA receptacle. This female socket features a 50 Ohm impedance and a straight body style. Designed for panel mounting, it utilizes a threaded fastening type and a flange mounting feature for secure installation. The contact termination is compression, and the center contact is constructed from Beryllium Copper. This component supports a maximum frequency of 18 GHz. Notable features include its field-replaceable design and suitability for hermetically sealed pins. This connector finds application in industries such as telecommunications, aerospace, and defense. It is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Field Replaceable, For Hermetically Sealed Pin |
| Packaging | Bulk |
| Connector Type | Receptacle, Female Socket |
| Contact Termination | Compression |
| Impedance | 50 Ohms |
| Mounting Type | Panel Mount |
| Cable Group | - |
| Fastening Type | Threaded |
| Ingress Protection | - |
| Connector Style | SMA |
| Mounting Feature | Flange |
| Housing Color | Silver |
| Shield Termination | Screw |
| Center Contact Material | Beryllium Copper |
| Frequency - Max | 18 GHz |
| Number of Ports | 1 |
