1052634-1
CONN SMA RCPT STR 50OHM COMPRESSManufacturer: TE Connectivity AMP Connectors
Categories: Coaxial Connector (RF) Assemblies
Quality Control: Learn More

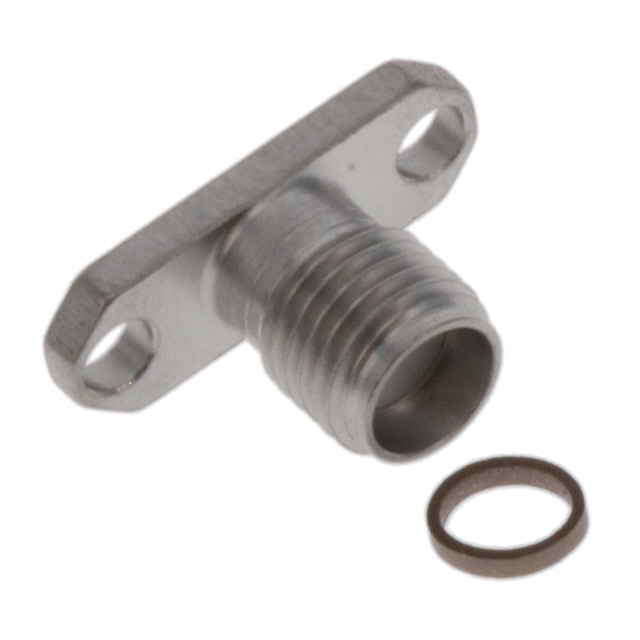

TE Connectivity AMP Connectors 1052634-1 is an SMA coaxial connector receptacle designed for 50 Ohm impedance applications. This female socket connector features a straight body style and utilizes a compression contact termination method, ensuring robust and reliable connections. The panel mount configuration with a flange mounting type facilitates secure integration into equipment. Constructed with a Beryllium Copper center contact, this component is built for demanding performance. Key features include EMI/RFI shielding and suitability for field replacement. With a maximum operating frequency of 18 GHz, it is well-suited for use in telecommunications, defense, and test and measurement industries. The connector's housing is silver in color, and it is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | EMI/RFI Gasket, Field Replaceable, For Hermetically Sealed Pin |
| Packaging | Bulk |
| Connector Type | Receptacle, Female Socket |
| Contact Termination | Compression |
| Impedance | 50 Ohms |
| Mounting Type | Panel Mount |
| Cable Group | - |
| Fastening Type | Threaded |
| Ingress Protection | - |
| Connector Style | SMA |
| Mounting Feature | Flange |
| Housing Color | Silver |
| Shield Termination | Screw |
| Center Contact Material | Beryllium Copper |
| Frequency - Max | 18 GHz |
| Number of Ports | 1 |
