1052072-1
CONN SMA PLUG R/A 50 OHM SOLDERManufacturer: TE Connectivity AMP Connectors
Categories: Coaxial Connector (RF) Assemblies
Quality Control: Learn More

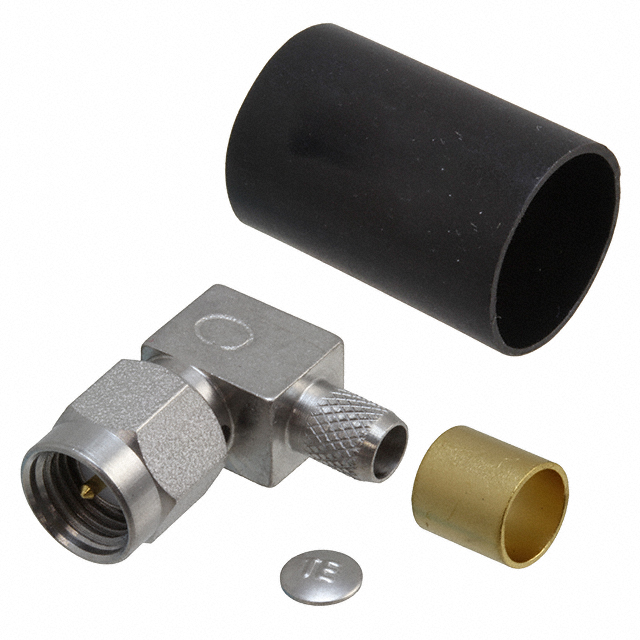

TE Connectivity AMP Connectors presents the 1052072-1, an SMA Plug for RF coaxial applications. This connector features a male pin configuration with a 50 Ohm impedance, designed for solder termination of the center contact. The unit is a right-angle, free-hanging (in-line) component, facilitating flexible cable routing in compact designs. It is compatible with cable groups including RG-55, RG-142, RG-223, and RG-400, utilizing a crimp termination for the shield. The beryllium copper center contact ensures robust signal integrity. This component is commonly found in telecommunications, aerospace, and defense systems where reliable high-frequency signal transmission is critical.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Connector Type | Plug, Male Pin |
| Contact Termination | Solder |
| Impedance | 50 Ohms |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Cable Group | RG-55, 142, 223, 400 |
| Fastening Type | Threaded |
| Ingress Protection | - |
| Connector Style | SMA |
| Mounting Feature | - |
| Housing Color | Silver |
| Shield Termination | Crimp |
| Center Contact Material | Beryllium Copper |
| Number of Ports | 1 |
