1051942-1
CONN SMA JACK STR 50 OHM SOLDERManufacturer: TE Connectivity AMP Connectors
Categories: Coaxial Connector (RF) Assemblies
Quality Control: Learn More

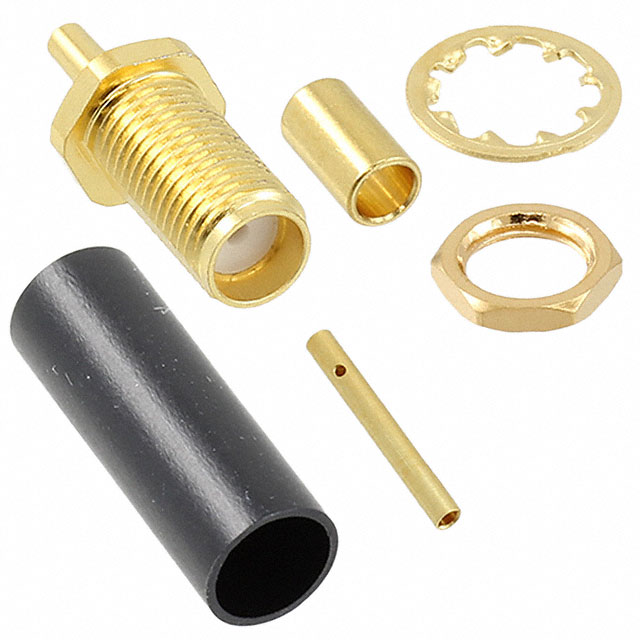

TE Connectivity AMP Connectors SMA Jack, Female Socket, part number 1051942-1, is a 50 Ohm coaxial connector designed for robust signal integrity up to 12.4 GHz. This bulkhead-mounted connector features a threaded fastening type and a panel mount configuration, suitable for front-side nut installation. The center contact is constructed from Beryllium Copper, ensuring excellent conductivity and durability. Termination is achieved via solder for both the contact and shield, providing a secure and reliable connection for RF applications. Compatible with cable groups including RG-174, 179, 187, 188, and 316, this connector is widely utilized in aerospace, defense, and telecommunications industries where high-frequency performance and dependable termination are critical. The gold housing color contributes to corrosion resistance.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Connector Type | Jack, Female Socket |
| Contact Termination | Solder |
| Impedance | 50 Ohms |
| Mounting Type | Panel Mount |
| Cable Group | RG-174, 179, 187, 188, 316 |
| Fastening Type | Threaded |
| Ingress Protection | - |
| Connector Style | SMA |
| Mounting Feature | Bulkhead - Front Side Nut |
| Housing Color | Gold |
| Shield Termination | Solder |
| Center Contact Material | Beryllium Copper |
| Frequency - Max | 12.4 GHz |
| Number of Ports | 1 |
