1051644-1
CONN SMA PLUG STR 50 OHM SOLDERManufacturer: TE Connectivity AMP Connectors
Categories: Coaxial Connector (RF) Assemblies
Quality Control: Learn More

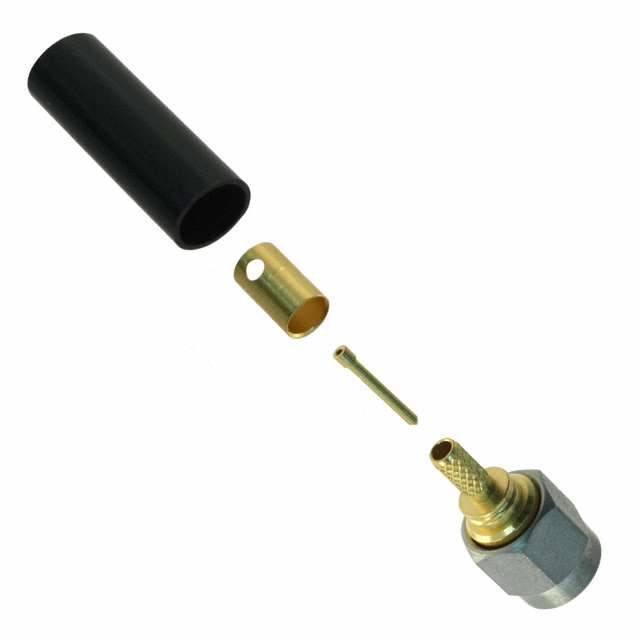

TE Connectivity AMP Connectors SMA Plug, Part Number 1051644-1, is a 50 Ohm coaxial connector designed for free-hanging (in-line) applications. This male pin connector features a threaded fastening type and utilizes solder termination for both the center contact and shield. The center contact is constructed from Beryllium Copper, ensuring robust conductivity. Engineered for high-frequency performance, it operates up to a maximum frequency of 12.4 GHz. The housing is finished in gold for optimal durability and signal integrity. This component is suitable for termination with cable groups such as RG-174, RG-188, and RG-316. It finds application in various industries including telecommunications and defense.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Connector Type | Plug, Male Pin |
| Contact Termination | Solder |
| Impedance | 50 Ohms |
| Mounting Type | Free Hanging (In-Line) |
| Cable Group | RG-174, 188, 316 |
| Fastening Type | Threaded |
| Ingress Protection | - |
| Connector Style | SMA |
| Mounting Feature | - |
| Housing Color | Gold |
| Shield Termination | Solder |
| Center Contact Material | Beryllium Copper |
| Frequency - Max | 12.4 GHz |
| Number of Ports | 1 |
