1051114-1
CONN SMA PLUG R/A 50 OHM SOLDERManufacturer: TE Connectivity AMP Connectors
Categories: Coaxial Connector (RF) Assemblies
Quality Control: Learn More

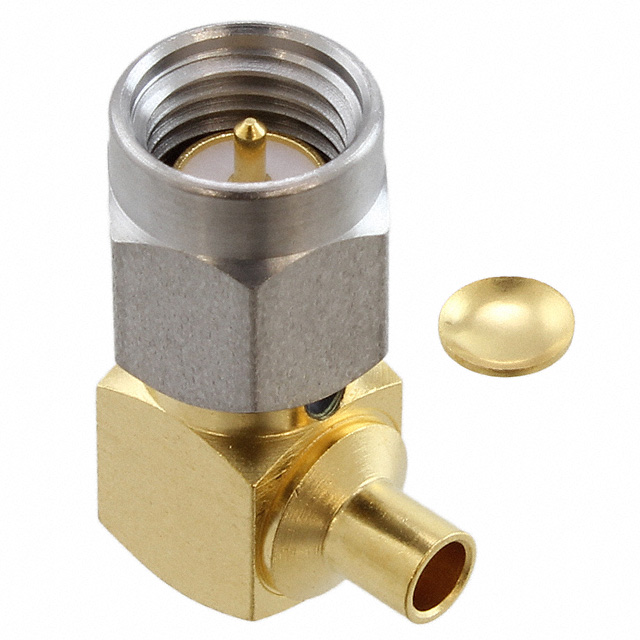

TE Connectivity AMP Connectors SMA Plug, Male Pin Connector, Part Number 1051114-1. This right-angle, free-hanging coaxial connector offers a 50-ohm impedance and is designed for solder termination. Featuring a beryllium copper center contact, it supports a maximum frequency of 18 GHz, making it suitable for applications in telecommunications, aerospace, and defense industries. The connector is compatible with RG-405 (.085" Semi Rigid) cable groups. Its threaded fastening type ensures a secure connection. The housing is finished in gold and silver.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Connector Type | Plug, Male Pin |
| Contact Termination | Solder |
| Impedance | 50 Ohms |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Cable Group | RG-405 (.085"" Semi Rigid) |
| Fastening Type | Threaded |
| Ingress Protection | - |
| Connector Style | SMA |
| Mounting Feature | - |
| Housing Color | Gold, Silver |
| Shield Termination | Solder |
| Center Contact Material | Beryllium Copper |
| Frequency - Max | 18 GHz |
| Number of Ports | 1 |
