1051001-1
CONN SMA JACK STR 50 OHM SOLDERManufacturer: TE Connectivity AMP Connectors
Categories: Coaxial Connector (RF) Assemblies
Quality Control: Learn More

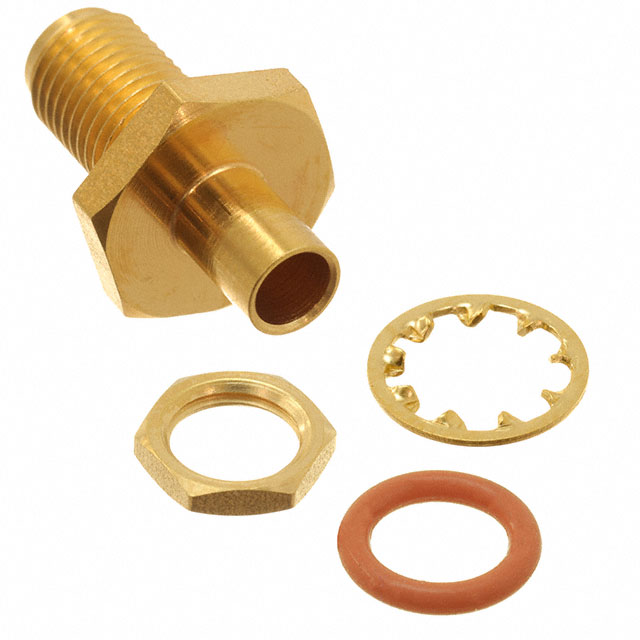

TE Connectivity AMP Connectors 1051001-1 is a coaxial RF connector designed for high-frequency applications. This SMA jack features a straight, female socket configuration with a 50 Ohm impedance, optimized for solder termination to RG-402 (.141" semi-rigid) cable. The beryllium copper center contact ensures robust signal integrity up to a maximum frequency of 18 GHz. Its threaded, bulkhead mounting style with a front-side nut facilitates secure panel installation. This component is commonly utilized in aerospace, defense, and telecommunications sectors where reliable RF signal transmission is critical.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Connector Type | Jack, Female Socket |
| Contact Termination | Solder |
| Impedance | 50 Ohms |
| Mounting Type | Panel Mount |
| Cable Group | RG-402 (.141"" Semi Rigid) |
| Fastening Type | Threaded |
| Ingress Protection | - |
| Connector Style | SMA |
| Mounting Feature | Bulkhead - Front Side Nut |
| Housing Color | Gold |
| Shield Termination | Solder |
| Center Contact Material | Beryllium Copper |
| Frequency - Max | 18 GHz |
| Number of Ports | 1 |
