1050903-1
CONN SMA JACK STR 50 OHM SOLDERManufacturer: TE Connectivity AMP Connectors
Categories: Coaxial Connector (RF) Assemblies
Quality Control: Learn More

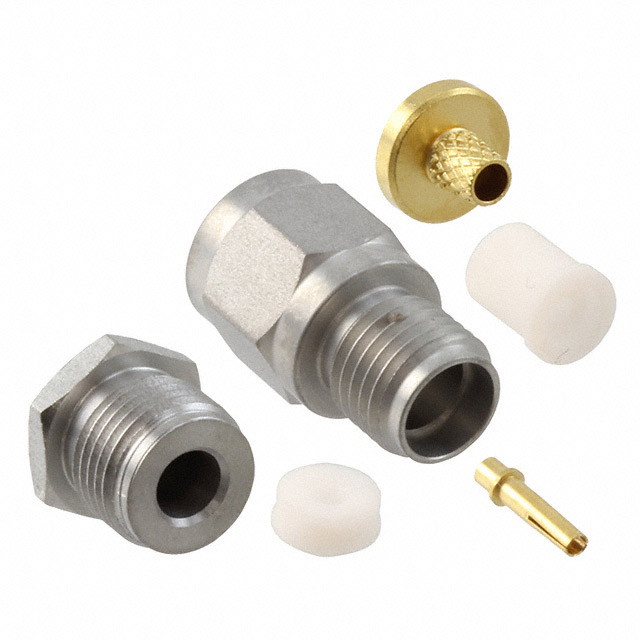

TE Connectivity AMP Connectors SMA Connector Jack, Female Socket (Part Number 1050903-1). This coaxial RF connector features a straight, solder termination for 50 Ohm impedance. Designed for free-hanging (in-line) applications, it utilizes a threaded fastening type. The center contact is constructed from Beryllium Copper, ensuring reliable performance. This component is specified for operation up to 12.4 GHz and is compatible with RG-188 cable groups, with shield termination via clamp. Commonly found in telecommunications and aerospace industries.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Connector Type | Jack, Female Socket |
| Contact Termination | Solder |
| Impedance | 50 Ohms |
| Mounting Type | Free Hanging (In-Line) |
| Cable Group | RG-188 |
| Fastening Type | Threaded |
| Ingress Protection | - |
| Connector Style | SMA |
| Mounting Feature | - |
| Housing Color | Silver |
| Shield Termination | Clamp |
| Center Contact Material | Beryllium Copper |
| Frequency - Max | 12.4 GHz |
| Number of Ports | 1 |
