1050762-1

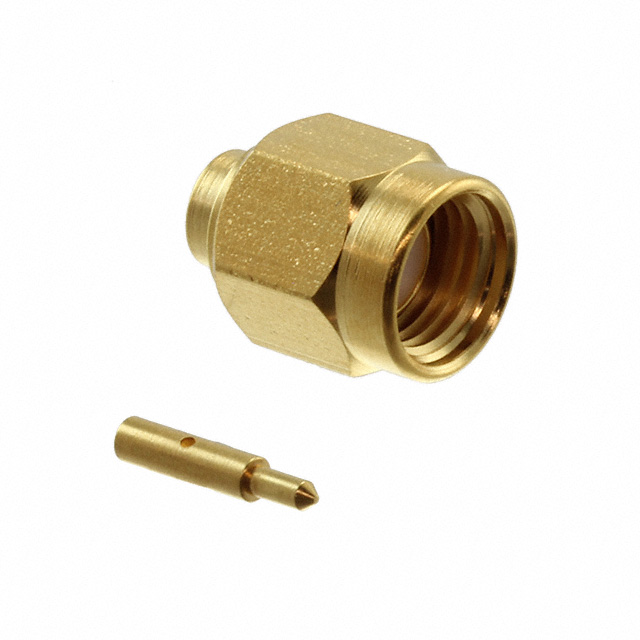

CONN SMA PLUG STR 50 OHM SOLDERManufacturer: TE Connectivity AMP Connectors
Categories: Coaxial Connector (RF) Assemblies
Quality Control: Learn More
TE Connectivity AMP Connectors presents the 1050762-1, a robust SMA Plug connector designed for high-frequency applications. This coaxial RF connector features a male pin configuration with a 50 Ohm impedance, suitable for demanding signal integrity requirements. Termination is achieved via solder, ensuring a secure and reliable connection for the center conductor and shield. Engineered for compatibility with RG-402 semi-rigid cable (.141" diameter), this connector offers a maximum operating frequency of 26.5 GHz. The Beryllium Copper center contact material provides excellent conductivity and mechanical strength. Its threaded fastening type and free-hanging, in-line mounting style facilitate straightforward integration into systems. This component finds application in aerospace, defense, and telecommunications infrastructure where precise RF performance is critical. Supplied in bulk packaging for efficient deployment in production environments.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Connector Type | Plug, Male Pin |
| Contact Termination | Solder |
| Impedance | 50 Ohms |
| Mounting Type | Free Hanging (In-Line) |
| Cable Group | RG-402 (.141"" Semi Rigid) |
| Fastening Type | Threaded |
| Ingress Protection | - |
| Connector Style | SMA |
| Mounting Feature | - |
| Housing Color | Gold |
| Shield Termination | Solder |
| Center Contact Material | Beryllium Copper |
| Frequency - Max | 26.5 GHz |
| Number of Ports | 1 |
