1-5227161-7

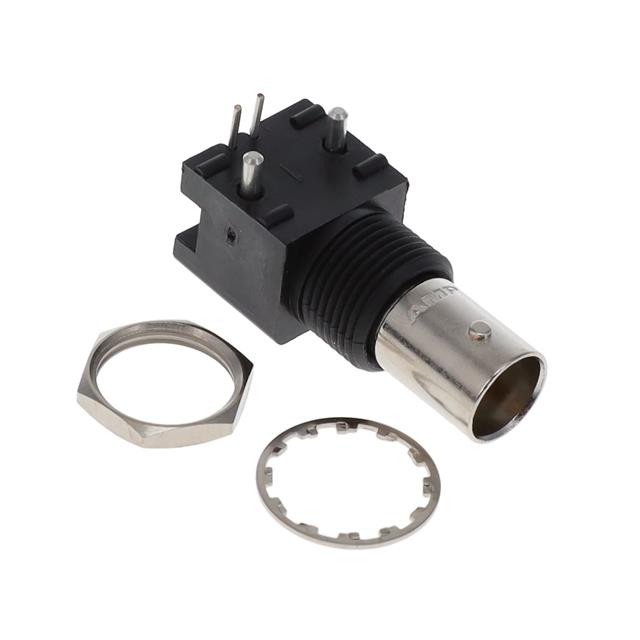

CONN BNC JACK R/A 50 OHM PCBManufacturer: TE Connectivity AMP Connectors
Categories: Coaxial Connector (RF) Assemblies
Quality Control: Learn More
BNC Connector Jack, Female Socket 50 Ohms Panel Mount, Through Hole, Right Angle Solder
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 37 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Guide, Isolated |
| Packaging | Tube |
| Connector Type | Jack, Female Socket |
| Contact Termination | Solder |
| Impedance | 50 Ohms |
| Mounting Type | Panel Mount, Through Hole, Right Angle |
| Cable Group | - |
| Fastening Type | Bayonet Lock |
| Ingress Protection | - |
| Connector Style | BNC |
| Mounting Feature | Bulkhead - Front Side Nut |
| Housing Color | - |
| Shield Termination | Solder |
| Center Contact Material | Phosphor Bronze |
| Frequency - Max | 4 GHz |
| Number of Ports | 1 |
