1-5227079-9
CONN BNC PLUG STR 50 OHM CRIMPManufacturer: TE Connectivity AMP Connectors
Categories: Coaxial Connector (RF) Assemblies
Quality Control: Learn More

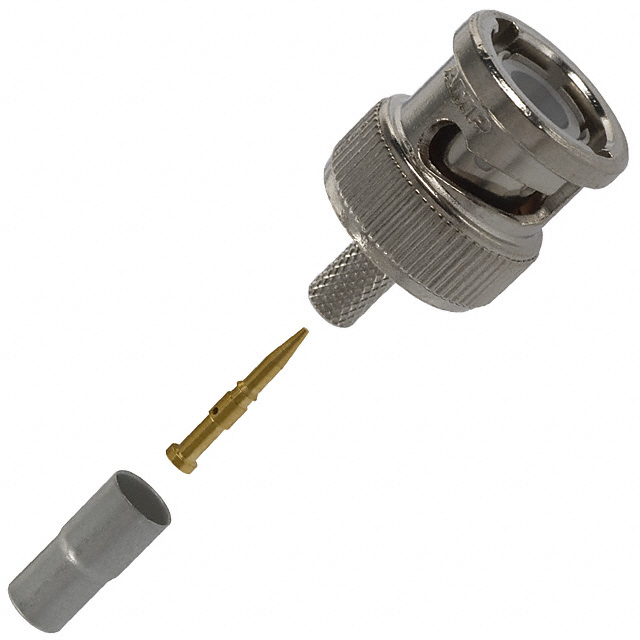

TE Connectivity AMP Connectors 1-5227079-9 is a BNC coaxial connector plug designed for 50 Ohm impedance applications. This in-line, free-hanging component features a male pin center contact constructed from brass and a bayonet lock fastening type. The contact termination and shield termination utilize a crimp method, providing a robust connection. Rated for a maximum frequency of 4 GHz, this connector is suitable for use with cable groups such as Belden 8218. Its silver housing color is standard for this connector style. This component finds application in telecommunications and broadcast industries where high-frequency signal integrity is critical.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Connector Type | Plug, Male Pin |
| Contact Termination | Crimp |
| Impedance | 50 Ohms |
| Mounting Type | Free Hanging (In-Line) |
| Cable Group | Belden 8218 |
| Fastening Type | Bayonet Lock |
| Ingress Protection | - |
| Connector Style | BNC |
| Mounting Feature | - |
| Housing Color | Silver |
| Shield Termination | Crimp |
| Center Contact Material | Brass |
| Frequency - Max | 4 GHz |
| Number of Ports | 1 |
