1-5225661-6
CONN N PLUG STR 50 OHM CRIMPManufacturer: TE Connectivity AMP Connectors
Categories: Coaxial Connector (RF) Assemblies
Quality Control: Learn More

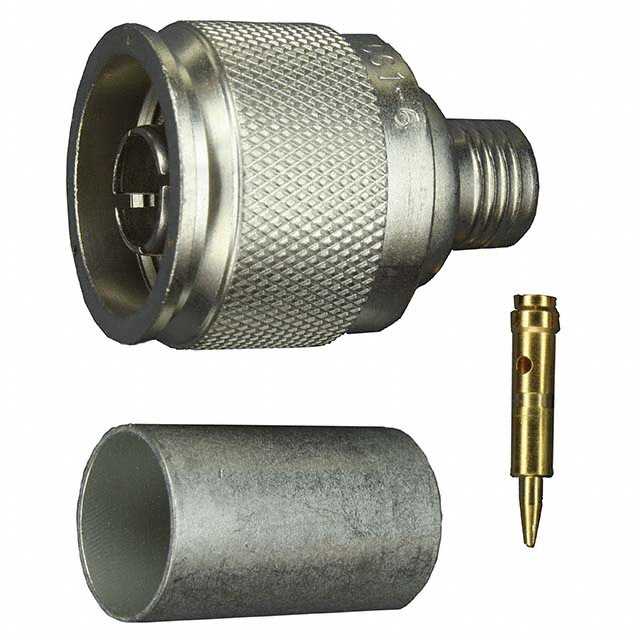

TE Connectivity AMP Connectors N Type Plug, Part Number 1-5225661-6, is a straight, free-hanging coaxial connector designed for 50 Ohm impedance applications. This male pin connector features a crimp termination for both the center contact and shield, ensuring robust signal integrity. Engineered for performance up to 11 GHz, it is compatible with the Belden 8214 cable group. The brass center contact and silver housing contribute to its durability and electrical characteristics. This component is widely utilized in telecommunications, test and measurement equipment, and base station infrastructure.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Connector Type | Plug, Male Pin |
| Contact Termination | Crimp |
| Impedance | 50 Ohms |
| Mounting Type | Free Hanging (In-Line) |
| Cable Group | Belden 8214 |
| Fastening Type | Threaded |
| Ingress Protection | - |
| Connector Style | N Type |
| Mounting Feature | - |
| Housing Color | Silver |
| Shield Termination | Crimp |
| Center Contact Material | Brass |
| Frequency - Max | 11 GHz |
| Number of Ports | 1 |
