1-5221128-1
CONN BNC PLUG STR 50 OHM CRIMPManufacturer: TE Connectivity AMP Connectors
Categories: Coaxial Connector (RF) Assemblies
Quality Control: Learn More

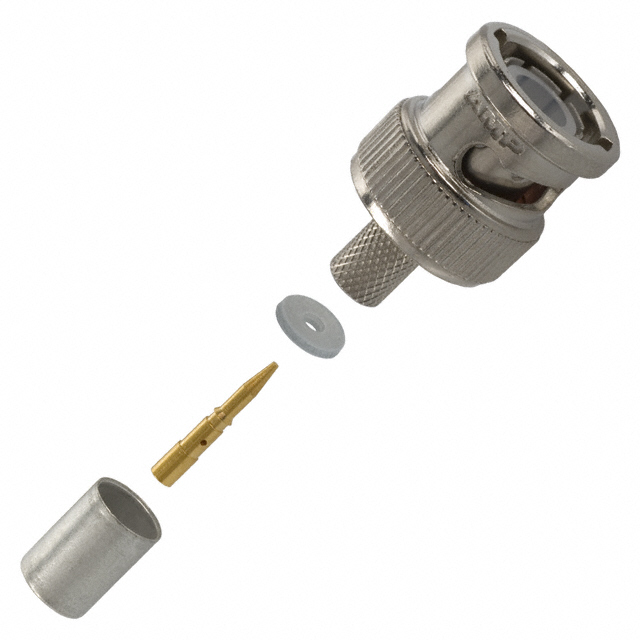

This TE Connectivity AMP Connectors BNC Plug, identified by part number 1-5221128-1, is a straight, male-pin coaxial connector designed for 50 Ohm impedance applications. It features a bayonet lock fastening for secure connection and a crimp termination for both the center contact and shield. This component is suitable for use with cable groups RG-59, 59A, 59B, 62, 62A, and 62B, supporting frequencies up to 4 GHz. The connector is designed for free-hanging, in-line mounting. Its robust construction and reliable connectivity make it a staple in various RF and telecommunications infrastructure, including broadcast equipment, test and measurement devices, and video surveillance systems. The brass center contact ensures efficient signal transfer.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Connector Type | Plug, Male Pin |
| Contact Termination | Crimp |
| Impedance | 50 Ohms |
| Mounting Type | Free Hanging (In-Line) |
| Cable Group | RG-59, 59A, 59B, 62, 62A, 62B |
| Fastening Type | Bayonet Lock |
| Ingress Protection | - |
| Connector Style | BNC |
| Mounting Feature | - |
| Housing Color | Silver |
| Shield Termination | Crimp |
| Center Contact Material | Brass |
| Frequency - Max | 4 GHz |
| Number of Ports | 1 |
