1-1634003-0
CONN MMCX PLUG R/A 50 OHM SOLDERManufacturer: TE Connectivity AMP Connectors
Categories: Coaxial Connector (RF) Assemblies
Quality Control: Learn More

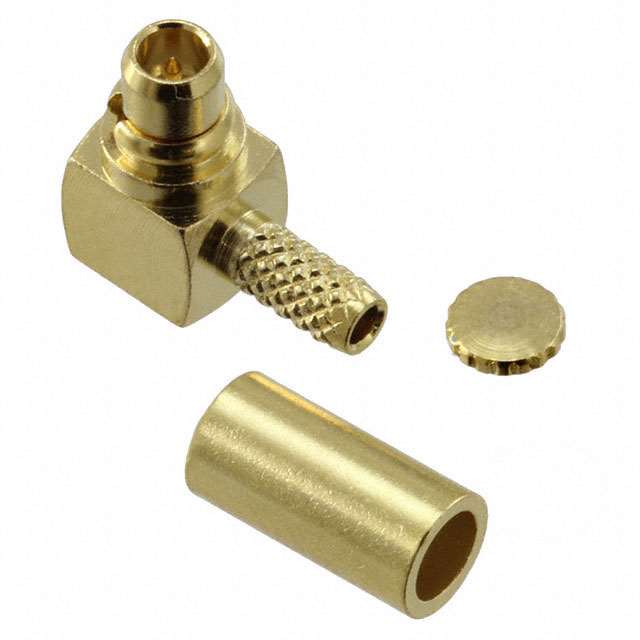

TE Connectivity AMP Connectors 1-1634003-0 is a Greenpar series MMCX connector plug. This right-angle, free-hanging component features a male pin and a 50 Ohm impedance, designed for solder termination. It supports a maximum frequency of 6 GHz and is suitable for cable groups such as RG-178 and RG-196A. The center contact is constructed from brass, and the connector utilizes a snap-on fastening type. This RF coaxial connector is commonly employed in telecommunications and test and measurement equipment.
Additional Information
Series: GreenparRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Connector Type | Plug, Male Pin |
| Contact Termination | Solder |
| Impedance | 50 Ohms |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Cable Group | RG-178, 196A |
| Fastening Type | Snap-On |
| Ingress Protection | - |
| Connector Style | MMCX |
| Mounting Feature | - |
| Housing Color | Gold |
| Shield Termination | Crimp |
| Center Contact Material | Brass |
| Frequency - Max | 6 GHz |
| Number of Ports | 1 |
