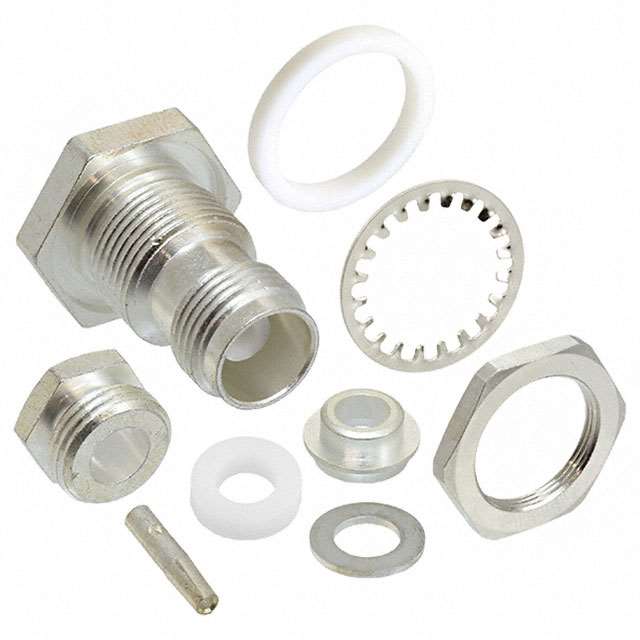

1-1478021-0
CONN TNC JACK STR 50 OHM SOLDERManufacturer: TE Connectivity AMP Connectors
Categories: Coaxial Connector (RF) Assemblies
Quality Control: Learn More
TE Connectivity AMP Connectors Greenpar Series 1-1478021-0 is a TNC jack, female socket coaxial connector designed for 50 Ohm impedance applications. This panel mount connector features a bulkhead mounting type with a front side nut for secure installation. The center contact is constructed from brass, and termination is achieved via solder. Designed for use with RG-58C and 141A cable groups, this connector offers a maximum operating frequency of 11 GHz. Shield termination is accomplished through a clamp method. This component is widely utilized in telecommunications and test and measurement equipment.
Additional Information
Series: GreenparRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Connector Type | Jack, Female Socket |
| Contact Termination | Solder |
| Impedance | 50 Ohms |
| Mounting Type | Panel Mount |
| Cable Group | RG-58C, 141A |
| Fastening Type | Threaded |
| Ingress Protection | - |
| Connector Style | TNC |
| Mounting Feature | Bulkhead - Front Side Nut |
| Housing Color | Silver |
| Shield Termination | Clamp |
| Center Contact Material | Brass |
| Frequency - Max | 11 GHz |
| Number of Ports | 1 |
