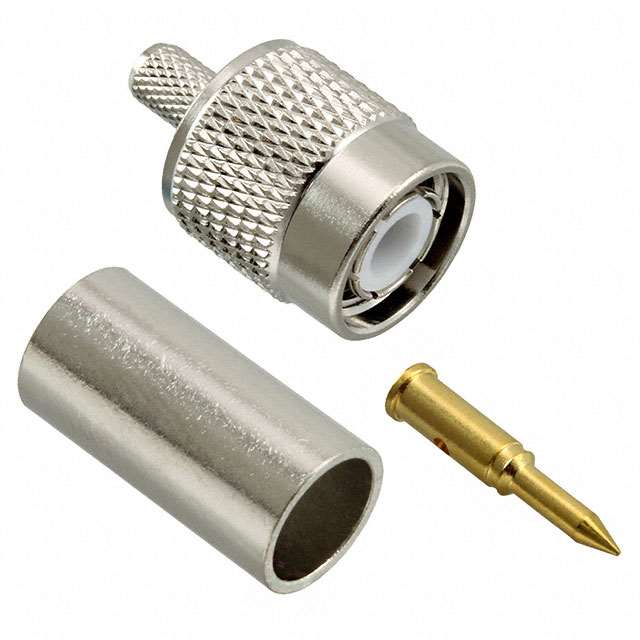

1-1337613-0
CONN TNC PLUG STR 50 OHM SOLDERManufacturer: TE Connectivity AMP Connectors
Categories: Coaxial Connector (RF) Assemblies
Quality Control: Learn More
TE Connectivity AMP Connectors Greenpar series TNC Plug, Part Number 1-1337613-0, is a coaxial RF connector designed for 50 Ohm impedance applications. This free-hanging (in-line) plug features a male pin center contact with brass material and a solder termination. It supports cable groups including RG-58C, 141A, and Belden 9907, with shield termination via crimp. The threaded fastening type and silver housing color are standard for this robust connector. Operating at a maximum frequency of 11 GHz, this component is utilized in telecommunications, test and measurement, and radar systems.
Additional Information
Series: GreenparRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Connector Type | Plug, Male Pin |
| Contact Termination | Solder |
| Impedance | 50 Ohms |
| Mounting Type | Free Hanging (In-Line) |
| Cable Group | RG-58C, 141A, Belden 9907 |
| Fastening Type | Threaded |
| Ingress Protection | - |
| Connector Style | TNC |
| Mounting Feature | - |
| Housing Color | Silver |
| Shield Termination | Crimp |
| Center Contact Material | Brass |
| Frequency - Max | 11 GHz |
| Number of Ports | 1 |
