1-1337611-0
CONN TNC PLUG STR 50 OHM SOLDERManufacturer: TE Connectivity AMP Connectors
Categories: Coaxial Connector (RF) Assemblies
Quality Control: Learn More

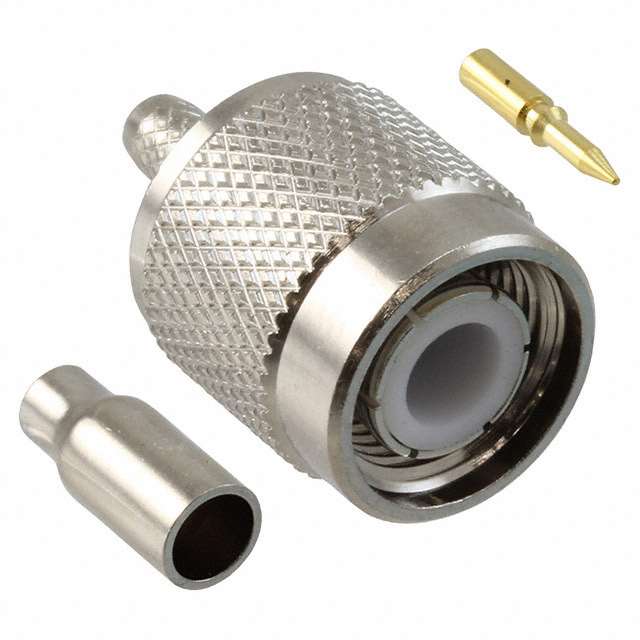

TE Connectivity AMP Connectors Greenpar series TNC plug, part number 1-1337611-0, is a 50 Ohm coaxial connector designed for robust RF applications. This straight, male pin connector features a solder termination for the center contact and a crimp termination for shield continuity, ensuring reliable signal integrity. Compatible with RG-174A, RG-188A, and RG-316 coaxial cables, it operates up to a maximum frequency of 11 GHz. The threaded coupling mechanism provides a secure connection. This component is widely utilized in aerospace, defense, and telecommunications industries where high-frequency performance and dependable connectivity are critical.
Additional Information
Series: GreenparRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Connector Type | Plug, Male Pin |
| Contact Termination | Solder |
| Impedance | 50 Ohms |
| Mounting Type | Free Hanging (In-Line) |
| Cable Group | RG-174A, 188A, 316 |
| Fastening Type | Threaded |
| Ingress Protection | - |
| Connector Style | TNC |
| Mounting Feature | - |
| Housing Color | Silver |
| Shield Termination | Crimp |
| Center Contact Material | Brass |
| Frequency - Max | 11 GHz |
| Number of Ports | 1 |
