5413592-6
CONN ADAPT PLUG TO JACK BNCManufacturer: TE Connectivity AMP Connectors
Categories: Coaxial Connector (RF) Adapters
Quality Control: Learn More

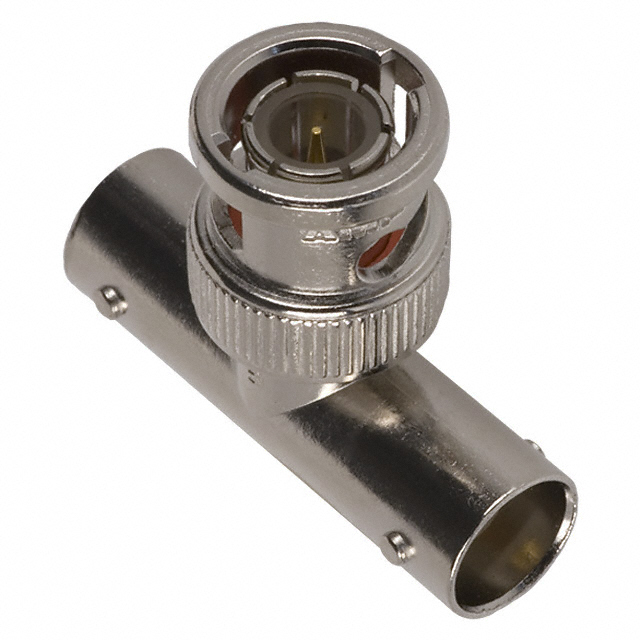

TE Connectivity AMP Connectors BNC adapter, part number 5413592-6, facilitates impedance-matched signal conversion between BNC plug (male pin) and BNC jack (female socket) interfaces. This dual BNC adapter operates at 50 Ohms, ensuring signal integrity for RF applications. Featuring gold-plated center contacts for superior conductivity and durability, the adapter utilizes a reliable bayonet lock fastening mechanism on both ends for secure mating. Its T-shape configuration and free-hanging (in-line) mounting type are suitable for various signal routing and testing scenarios within telecommunications, broadcast, and test and measurement equipment. The component is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Impedance | 50 Ohms |
| Mounting Type | Free Hanging (In-Line) |
| Style | T-Shape |
| Convert From (Adapter End) | BNC Plug, Male Pin |
| Convert To (Adapter End) | BNC Jack, Female Socket (2) |
| Fastening Type | Bayonet Lock, Bayonet Lock |
| Ingress Protection | - |
| Mounting Feature | - |
| Adapter Series | BNC to BNC, Dual |
| Adapter Type | Plug to Jack |
| Center Gender | Female to Male |
| Conversion Type | Same Series |
| Center Contact Plating | Gold |
