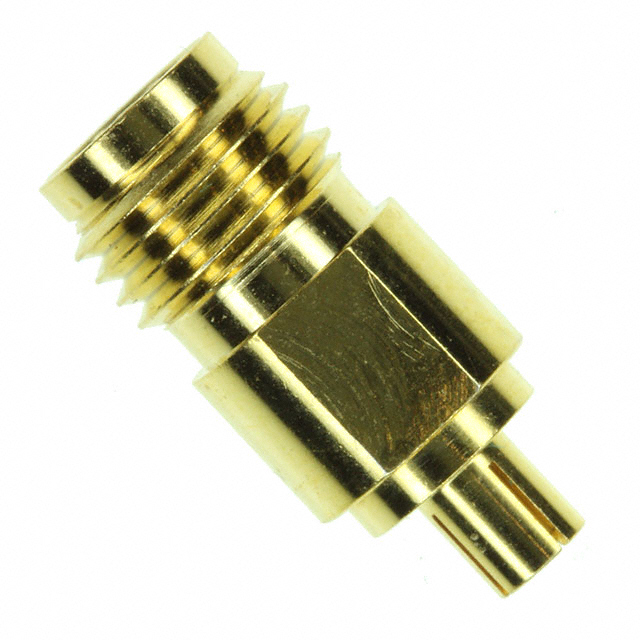

1775230-1
CONN ADAPT UMC PLUG TO SMA JACKManufacturer: TE Connectivity AMP Connectors
Categories: Coaxial Connector (RF) Adapters
Quality Control: Learn More
TE Connectivity AMP Connectors 1775230-1 is a coaxial adapter designed for reliable RF signal transmission. This between-series adapter facilitates a connection between an SMA jack and a U.FL (UMCC) plug. Both connector interfaces feature female sockets and a 50 Ohm impedance. The SMA side utilizes a threaded fastening mechanism, while the U.FL end employs a snap-on coupling. The center contacts are gold-plated for enhanced conductivity and corrosion resistance. With a maximum operating frequency of 6 GHz, this adapter is suitable for various applications in telecommunications, test and measurement, and industrial equipment where efficient signal routing between different coaxial standards is required. The component is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Impedance | 50 Ohms |
| Mounting Type | Free Hanging (In-Line) |
| Style | Straight |
| Convert From (Adapter End) | SMA Jack, Female Socket |
| Convert To (Adapter End) | U.FL (UMCC) Plug, Female Socket |
| Fastening Type | Snap-On, Threaded |
| Ingress Protection | - |
| Mounting Feature | - |
| Adapter Series | SMA to U.FL (UMCC) |
| Adapter Type | Plug to Jack |
| Center Gender | Female to Female |
| Conversion Type | Between Series |
| Center Contact Plating | Gold |
| Frequency - Max | 6 GHz |
