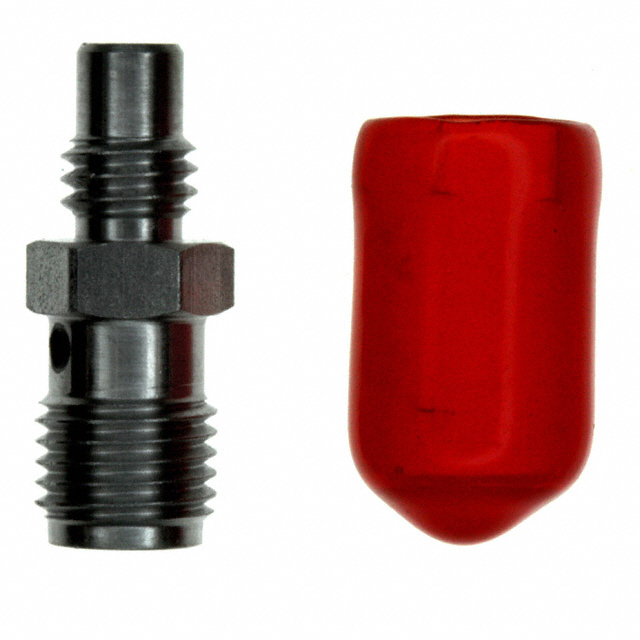

1060266-1
CONN ADAPT SMA JACK TO SMC JACKManufacturer: TE Connectivity AMP Connectors
Categories: Coaxial Connector (RF) Adapters
Quality Control: Learn More
TE Connectivity AMP Connectors introduces the 1060266-1, a coaxial adapter facilitating conversion between SMA and SMC connector series. This in-line, straight-style adapter features an SMA jack (female socket) on one end and an SMC jack (male pin) on the other. The center contacts are gold-plated for enhanced conductivity. Designed for reliable signal integrity, this adapter supports frequencies up to 10 GHz. Its threaded fastening ensures a secure connection. This component is commonly utilized in RF systems across telecommunications, defense, and test and measurement industries where inter-series connectivity is required.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Impedance | - |
| Mounting Type | Free Hanging (In-Line) |
| Style | Straight |
| Convert From (Adapter End) | SMA Jack, Female Socket |
| Convert To (Adapter End) | SMC Jack, Male Pin |
| Fastening Type | Threaded, Threaded |
| Ingress Protection | - |
| Mounting Feature | - |
| Adapter Series | OSM to SMC |
| Adapter Type | Jack to Jack |
| Center Gender | Female to Male |
| Conversion Type | Between Series |
| Center Contact Plating | Gold |
| Frequency - Max | 10 GHz |
