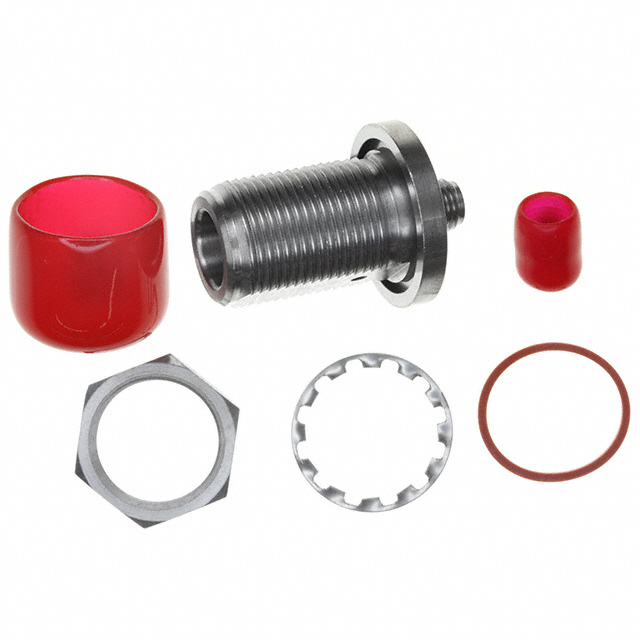

1058675-1
CONN ADAPT SMA JACK TO N JACKManufacturer: TE Connectivity AMP Connectors
Categories: Coaxial Connector (RF) Adapters
Quality Control: Learn More
TE Connectivity AMP Connectors coaxial adapter, part number 1058675-1, facilitates conversion between SMA and N series connectors. This straight, bulkhead-mounted adapter features female jack interfaces at both ends, connecting an SMA female socket to an N female socket. With a 50 Ohm impedance and a maximum operating frequency of 18 GHz, it utilizes gold plating on the center contact for optimal signal integrity. This component is commonly employed in wireless infrastructure, test and measurement equipment, and aerospace and defense applications where reliable RF signal transition between different connector types is critical.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Impedance | 50 Ohms |
| Mounting Type | Panel Mount |
| Style | Straight |
| Convert From (Adapter End) | SMA Jack, Female Socket |
| Convert To (Adapter End) | N Jack, Female Socket |
| Fastening Type | Threaded, Threaded |
| Ingress Protection | - |
| Mounting Feature | Bulkhead |
| Adapter Series | SMA to N |
| Adapter Type | Jack to Jack |
| Center Gender | Female to Female |
| Conversion Type | Between Series |
| Center Contact Plating | Gold |
| Frequency - Max | 18 GHz |
