1057392-1

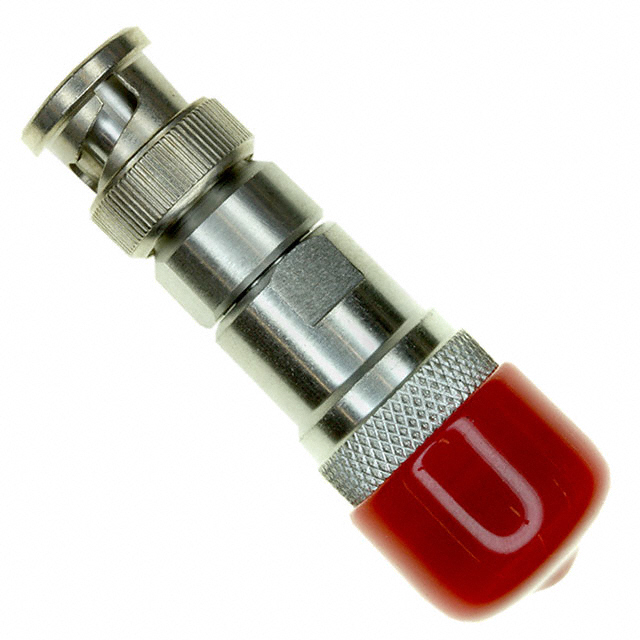

CONN ADAPT BNC PLUG TO N JACKManufacturer: TE Connectivity AMP Connectors
Categories: Coaxial Connector (RF) Adapters
Quality Control: Learn More
TE Connectivity AMP Connectors coaxial adapter, part number 1057392-1, facilitates seamless conversion between BNC Plug (Male Pin) and N Jack (Female Socket) interfaces. This straight, in-line adapter operates at a maximum frequency of 4 GHz with a characteristic impedance of 50 Ohms, ensuring signal integrity for RF applications. Featuring gold-plated center contacts for superior conductivity and corrosion resistance, it employs a bayonet lock on the BNC side and a threaded coupling for secure connections. This component is commonly utilized in telecommunications, test and measurement, and broadcast industries where reliable RF signal routing is critical.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Impedance | 50 Ohms |
| Mounting Type | Free Hanging (In-Line) |
| Style | Straight |
| Convert From (Adapter End) | BNC Plug, Male Pin |
| Convert To (Adapter End) | N Jack, Female Socket |
| Fastening Type | Bayonet Lock, Threaded |
| Ingress Protection | - |
| Mounting Feature | - |
| Adapter Series | BNC to N |
| Adapter Type | Plug to Jack |
| Center Gender | Female to Male |
| Conversion Type | Between Series |
| Center Contact Plating | Gold |
| Frequency - Max | 4 GHz |
Request a Quote
