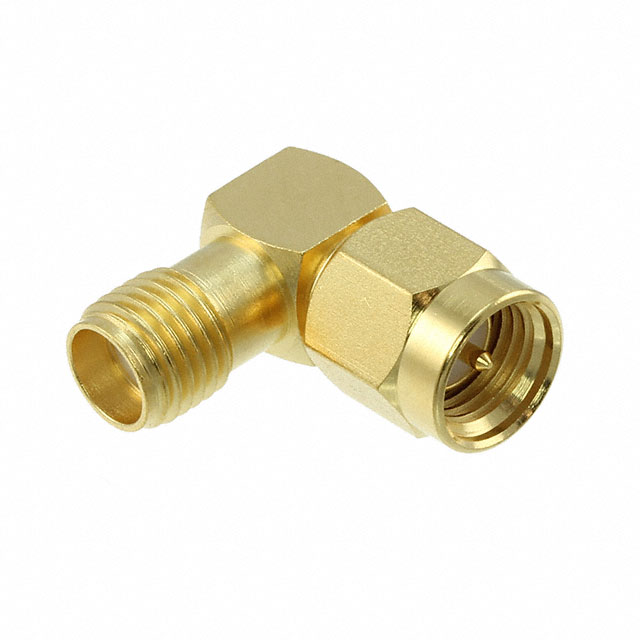

1055064-1
CONN ADAPT PLUG-JACK OSM 50 OHMManufacturer: TE Connectivity AMP Connectors
Categories: Coaxial Connector (RF) Adapters
Quality Control: Learn More
TE Connectivity AMP Connectors offers a coaxial adapter, part number 1055064-1, for high-frequency applications. This OSM to OSM series adapter facilitates the conversion between an SMA plug with a male pin and an SMA jack with a female socket. It operates with a 50 Ohm impedance and supports a maximum frequency of 18 GHz. The adapter features a right-angle mounting style for flexible in-line connectivity and is constructed with gold plating on the center contact. This component is suitable for use in telecommunications and defense industries where reliable RF signal transmission is critical.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Impedance | 50 Ohms |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Style | Right Angle |
| Convert From (Adapter End) | SMA Plug, Male Pin |
| Convert To (Adapter End) | SMA Jack, Female Socket |
| Fastening Type | Threaded, Threaded |
| Ingress Protection | - |
| Mounting Feature | - |
| Adapter Series | OSM to OSM |
| Adapter Type | Plug to Jack |
| Center Gender | Female to Male |
| Conversion Type | Same Series |
| Center Contact Plating | Gold |
| Frequency - Max | 18 GHz |
