1053640-1
CONN ADAPT PLUG-PLUG OSM 50 OHMManufacturer: TE Connectivity AMP Connectors
Categories: Coaxial Connector (RF) Adapters
Quality Control: Learn More

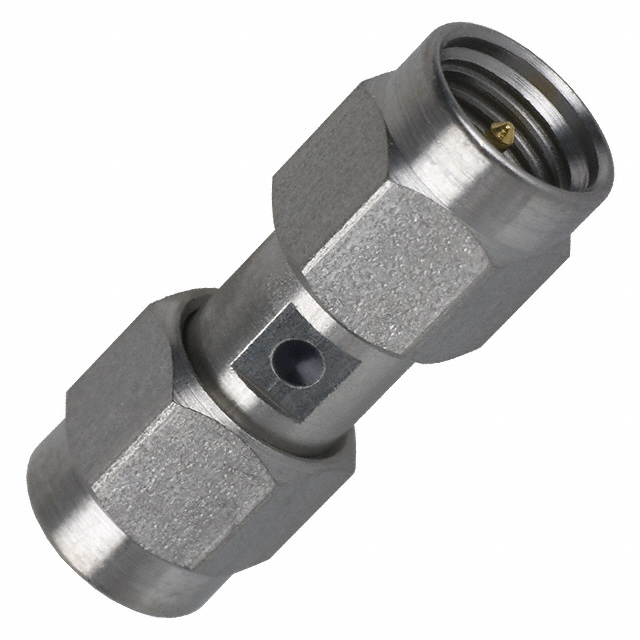

TE Connectivity AMP Connectors adapter, part number 1053640-1, is a straight, plug-to-plug coaxial adapter designed for 50 Ohm impedance applications. This component facilitates a direct conversion between two SMA plug connectors, both featuring male pins and threaded fastening. The center contacts are plated with gold for enhanced conductivity and durability. Operating up to a maximum frequency of 18 GHz, this adapter is suitable for in-line, free-hanging mounting configurations. It is commonly employed in telecommunications, aerospace, and defense industries where reliable signal integrity in RF systems is critical. The adapter utilizes the OSM series interface for both connection points.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Impedance | 50 Ohms |
| Mounting Type | Free Hanging (In-Line) |
| Style | Straight |
| Convert From (Adapter End) | SMA Plug, Male Pin |
| Convert To (Adapter End) | SMA Plug, Male Pin |
| Fastening Type | Threaded, Threaded |
| Ingress Protection | - |
| Mounting Feature | - |
| Adapter Series | OSM to OSM |
| Adapter Type | Plug to Plug |
| Center Gender | Male to Male |
| Conversion Type | Same Series |
| Center Contact Plating | Gold |
| Frequency - Max | 18 GHz |
