1053488-1

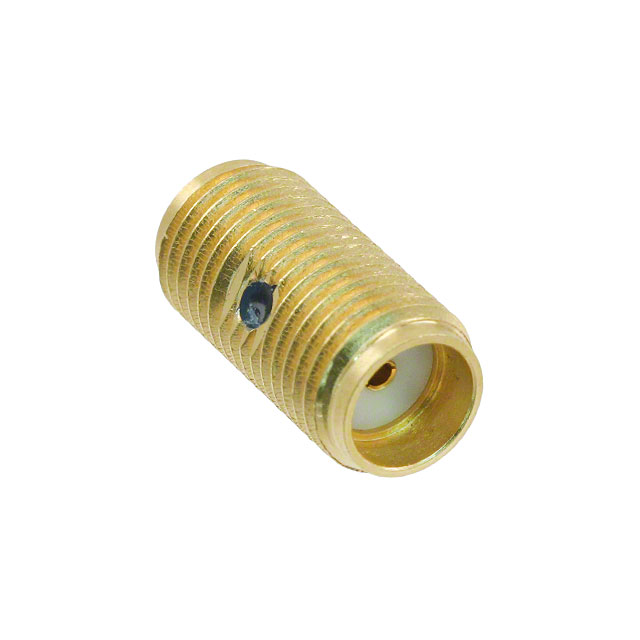

CONN ADAPT JACK-JACK OSM 50 OHMManufacturer: TE Connectivity AMP Connectors
Categories: Coaxial Connector (RF) Adapters
Quality Control: Learn More
TE Connectivity AMP Connectors coaxial adapter, part number 1053488-1, facilitates a direct impedance-matched connection between two SMA jack, female socket interfaces. This straight, in-line adapter operates within a 50 Ohm impedance to a maximum frequency of 18 GHz, ensuring signal integrity in demanding RF applications. Featuring gold-plated center contacts for optimal conductivity and durability, this component is designed for reliable performance in high-frequency systems. Its threaded fastening ensures a secure mechanical connection. Commonly utilized in aerospace, defense, and telecommunications infrastructure, this adapter is essential for extending or adapting coaxial cable assemblies.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Impedance | 50 Ohms |
| Mounting Type | Free Hanging (In-Line) |
| Style | Straight |
| Convert From (Adapter End) | SMA Jack, Female Socket |
| Convert To (Adapter End) | SMA Jack, Female Socket |
| Fastening Type | Threaded, Threaded |
| Ingress Protection | - |
| Mounting Feature | - |
| Adapter Series | OSM to OSM |
| Adapter Type | Jack to Jack |
| Center Gender | Female to Female |
| Conversion Type | Same Series |
| Center Contact Plating | Gold |
| Frequency - Max | 18 GHz |
