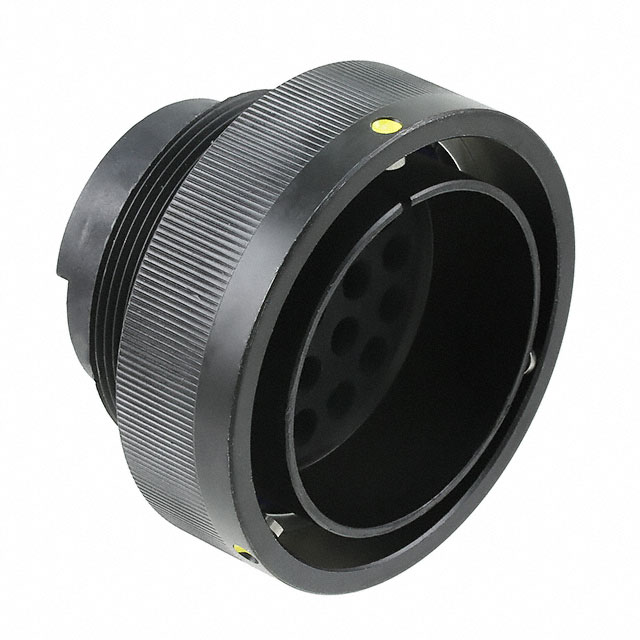

CIRPSE06T36A22PV0N
CONN PLUG HSG MALE 22POS INLINEManufacturer: TE Connectivity AMP Connectors
Categories: Circular Connector Housings
Quality Control: Learn More
22 Position Circular Connector Plug Housing Free Hanging (In-Line) Coupling Nut
Additional Information
Series: CIRPRoHS Status: ROHS3 CompliantManufacturer Lead Time: 25 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Coupling Nut |
| Packaging | Bulk |
| Connector Type | Plug Housing |
| Mounting Type | Free Hanging (In-Line) |
| Shielding | Shielded |
| Number of Positions | 22 |
| Type | For Male Pins |
| Orientation | N (Normal) |
| Shell Size - Insert | 36-A22 |
| Contact Type | Crimp |
| Fastening Type | Reverse Bayonet Lock |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Contact Size | 12 |
| Material Flammability Rating | - |
| Mounting Feature | - |
| Shell Size, MIL | - |
| Housing Color | Black |
| Shell Material | Aluminum Alloy |
| Shell Finish | Chromate over Zinc Cobalt |
Request a Quote
