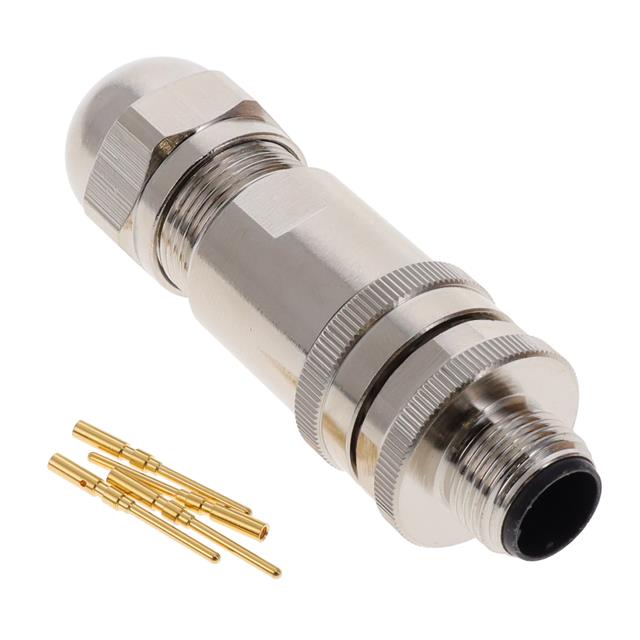

2351378-3
M12 MALE,D4 CODE,STR CONNECTOR,Manufacturer: TE Connectivity AMP Connectors
Categories: Circular Connector Housings
Quality Control: Learn More
4 Position Circular Connector Plug Housing Free Hanging (In-Line) Backshell, Railway (EN45545, IEC61373)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Features | Backshell, Railway (EN45545, IEC61373) |
| Packaging | Box |
| Connector Type | Plug Housing |
| Mounting Type | Free Hanging (In-Line) |
| Shielding | Shielded |
| Number of Positions | 4 |
| Type | For Male Pins |
| Orientation | D |
| Shell Size - Insert | M12-4 |
| Contact Type | Crimp |
| Fastening Type | Threaded |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Contact Size | - |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | - |
| Shell Size, MIL | - |
| Housing Color | Silver |
| Shell Material | Brass |
| Shell Finish | Nickel |
| Primary Material | Metal |
