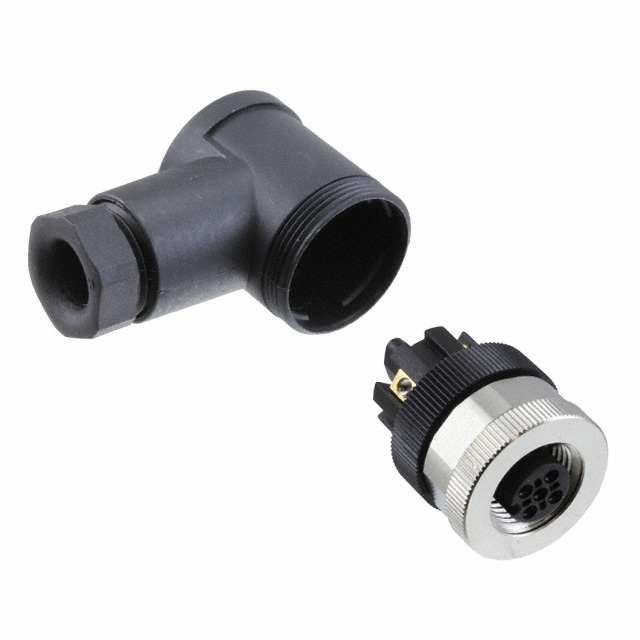

T4112001051-000
CONN PLUG FMALE 5POS GOLD SCREWManufacturer: TE Connectivity AMP Connectors
Categories: Circular Connector Assemblies
Quality Control: Learn More
5 Position Circular Connector Plug, Female Sockets Screw
Additional Information
Series: M12RoHS Status: Request inventory verificationManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Backshell, Coupling Nut |
| Packaging | Bulk |
| Connector Type | Plug, Female Sockets |
| Color | Black, Silver |
| Voltage Rating | 60V |
| Current Rating (Amps) | 4A |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Shielding | Unshielded |
| Number of Positions | 5 |
| Orientation | A |
| Shell Size - Insert | M12-5 |
| Operating Temperature | -40°C ~ 85°C |
| Fastening Type | Threaded |
| Termination | Screw |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Cable Opening | 0.157"" ~ 0.236"" (4.00mm ~ 6.00mm) |
| Material Flammability Rating | - |
| Mounting Feature | - |
| Shell Size, MIL | - |
| Contact Finish - Mating | Gold |
| Shell Material | Brass |
| Shell Finish | Nickel |
| Primary Material | Metal |
