796375-1
CONN RCPT MALE 9POS GOLD SOLDERManufacturer: TE Connectivity AMP Connectors
Categories: Circular Connector Assemblies
Quality Control: Learn More

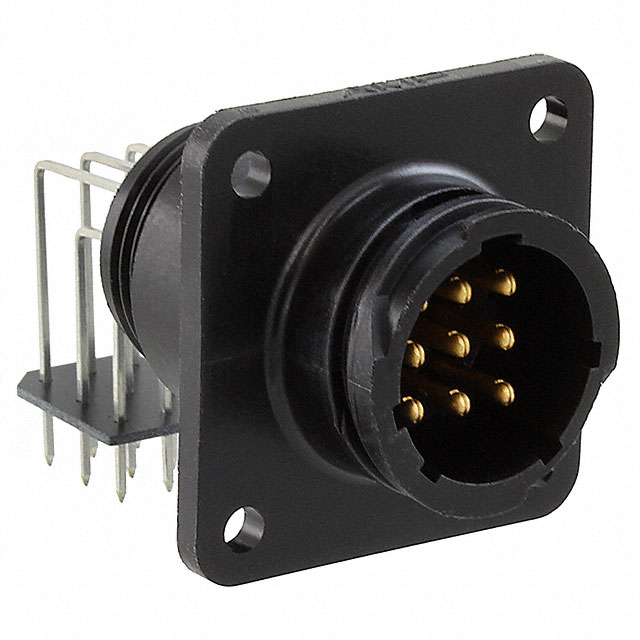

TE Connectivity AMP Connectors, CPC Series 1, 796375-1. This 9-position circular receptacle features male pins with gold contact finish for mating. Designed for panel mount, through-hole, right-angle applications, it utilizes a threaded fastening type and a flange mounting feature. The thermoplastic shell material, with a UL94 V-0 flammability rating, houses solder termination contacts. Operating within a temperature range of -55°C to 105°C, this component is rated for 250VAC/DC. Its insert size corresponds to shell size 13-9. This connector is found in industrial automation and telecommunications equipment.
Additional Information
Series: CPC Series 1RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Connector Type | Receptacle, Male Pins |
| Color | - |
| Voltage Rating | 250VAC/DC |
| Current Rating (Amps) | - |
| Mounting Type | Panel Mount, Through Hole, Right Angle |
| Shielding | - |
| Number of Positions | 9 |
| Orientation | A |
| Shell Size - Insert | 13-9 |
| Operating Temperature | -55°C ~ 105°C |
| Fastening Type | Threaded |
| Termination | Solder |
| Ingress Protection | - |
| Cable Opening | - |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | Flange |
| Shell Size, MIL | - |
| Contact Finish - Mating | Gold |
| Shell Material | Thermoplastic |
| Shell Finish | - |
| Primary Material | Plastic |
