6-2271143-2
M12,FEMALE PNL,A CODE,12P,PCB TYManufacturer: TE Connectivity AMP Connectors
Categories: Circular Connector Assemblies
Quality Control: Learn More

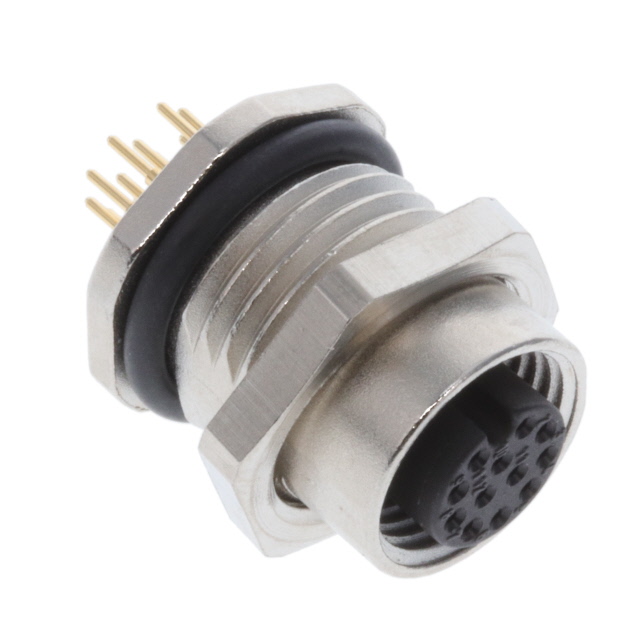

TE Connectivity AMP Connectors M12 series receptacle, part number 6-2271143-2, offers a panel mount, through-hole solution for robust connectivity. This A-coded, 12-position female connector features gold-plated contacts with a 2A current rating and 30VAC/DC voltage rating. The zinc die-cast shell provides a nickel finish and M12-12 insert size, ensuring durability and reliable performance in demanding environments. Designed for bulkhead mounting with a front-side nut and threaded fastening, this unshielded connector boasts IP68 ingress protection, making it suitable for applications in industrial automation, sensor networks, and harsh environmental conditions. The solder termination ensures secure connections, and the operating temperature range is -40°C to 85°C.
Additional Information
Series: M12RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Connector Type | Receptacle, Female Sockets |
| Color | Silver |
| Voltage Rating | 30VAC/DC |
| Current Rating (Amps) | 2A |
| Mounting Type | Panel Mount, Through Hole |
| Shielding | Unshielded |
| Number of Positions | 12 |
| Orientation | A |
| Shell Size - Insert | M12-12 |
| Operating Temperature | -40°C ~ 85°C |
| Fastening Type | Threaded |
| Termination | Solder |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Cable Opening | - |
| Material Flammability Rating | - |
| Mounting Feature | Bulkhead - Front Side Nut |
| Shell Size, MIL | - |
| Contact Finish - Mating | Gold |
| Shell Material | Zinc Die Cast |
| Shell Finish | Nickel |
| Primary Material | Metal |
