6-2271123-2
M12,MALE,A CODE,R/A,12P,PG9,SHIEManufacturer: TE Connectivity AMP Connectors
Categories: Circular Connector Assemblies
Quality Control: Learn More

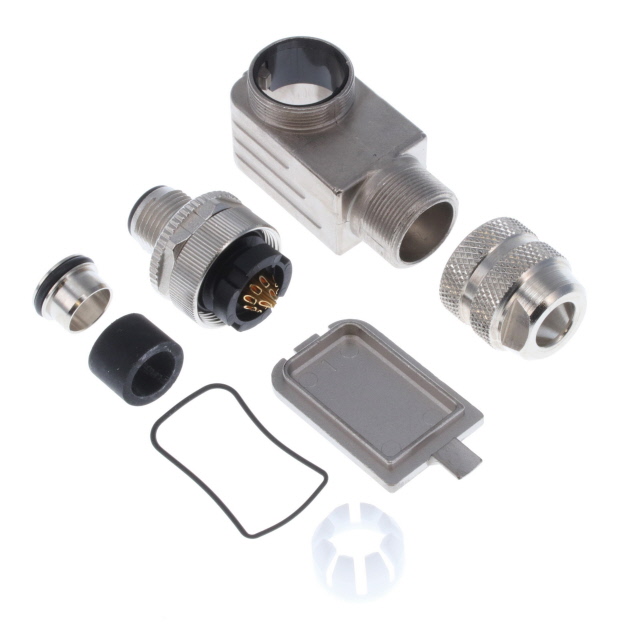

12 Position Circular Connector Receptacle, Male Pins Screw
Additional Information
Series: M12RoHS Status: ROHS3 CompliantManufacturer Lead Time: 24 week(s)Product Status: ActivePackaging: BagDatasheet:Download Free CAD Model:
Technical Details:
| Features | Backshell |
| Packaging | Bag |
| Connector Type | Receptacle, Male Pins |
| Color | Silver |
| Voltage Rating | 30VAC/DC |
| Current Rating (Amps) | 2A |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Shielding | Shielded |
| Number of Positions | 12 |
| Orientation | A |
| Shell Size - Insert | M12-12 |
| Operating Temperature | -40°C ~ 85°C |
| Fastening Type | Threaded |
| Termination | Screw |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Cable Opening | 0.236"" ~ 0.315"" (6.00mm ~ 8.00mm) |
| Material Flammability Rating | - |
| Mounting Feature | - |
| Shell Size, MIL | - |
| Contact Finish - Mating | Gold |
| Shell Material | Zinc Die Cast |
| Shell Finish | Nickel |
| Primary Material | Metal |
