6-1437719-5

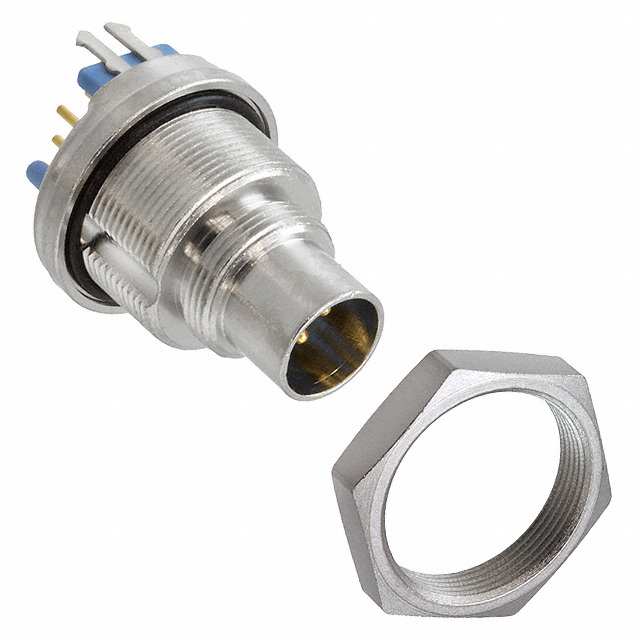

CONN PLUG MALE 5POS SOLDERManufacturer: TE Connectivity AMP Connectors
Categories: Circular Connector Assemblies
Quality Control: Learn More
5 Position Circular Connector Plug, Male Pins Solder
Additional Information
Series: TRIAD01RoHS Status: ROHS3 CompliantManufacturer Lead Time: 27 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Lock |
| Packaging | Bulk |
| Connector Type | Plug, Male Pins |
| Color | - |
| Voltage Rating | 60VAC |
| Current Rating (Amps) | 3A |
| Mounting Type | Panel Mount, Through Hole |
| Shielding | Shielded |
| Number of Positions | 5 |
| Orientation | Keyed |
| Shell Size - Insert | - |
| Operating Temperature | -40°C ~ 85°C |
| Fastening Type | Threaded |
| Termination | Solder |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Cable Opening | - |
| Material Flammability Rating | UL94 V-2 |
| Mounting Feature | Bulkhead |
| Shell Size, MIL | - |
| Contact Finish - Mating | - |
| Shell Material | Brass |
| Shell Finish | Tribor |
| Primary Material | Metal |
