5750329-2
CONN RCPT FMALE MINI DIN 6P SLDRManufacturer: TE Connectivity AMP Connectors
Categories: Circular Connector Assemblies
Quality Control: Learn More

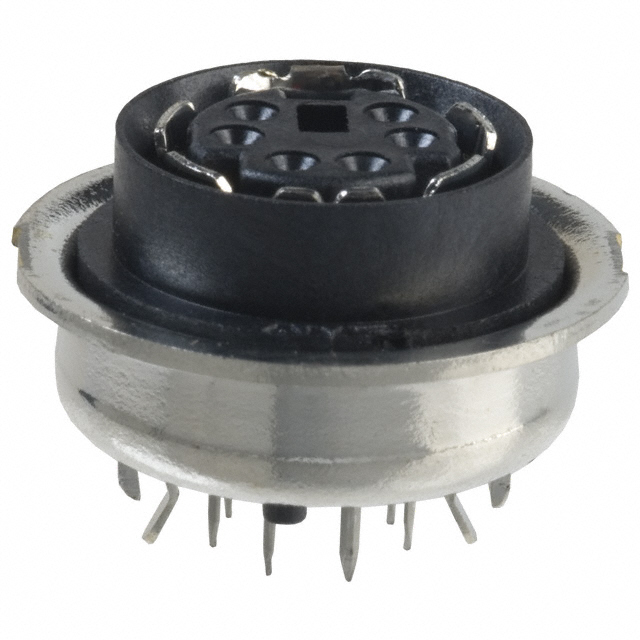

TE Connectivity AMP Connectors 5750329-2 is a 6-position female socket receptacle for Mini DIN circular connectors. This panel mount, through-hole component features a push-pull fastening system and keyed orientation for secure mating. The contacts offer a gold mating finish with a 1A current rating and a 30VDC voltage rating. Constructed with a Polyester shell and UL94 V-0 rated plastic, this shielded connector is designed for reliability in demanding applications. Operating temperature ranges from -55°C to 105°C. This component is commonly utilized in industrial automation, medical equipment, and broadcast audio/video systems.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Connector Type | Receptacle, Female Sockets |
| Color | - |
| Voltage Rating | 30VDC |
| Current Rating (Amps) | 1A |
| Mounting Type | Panel Mount, Through Hole |
| Shielding | Shielded |
| Number of Positions | 6 |
| Orientation | Keyed |
| Shell Size - Insert | Mini DIN |
| Operating Temperature | -55°C ~ 105°C |
| Fastening Type | Push-Pull |
| Termination | Solder |
| Ingress Protection | - |
| Cable Opening | - |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | Flange |
| Shell Size, MIL | - |
| Contact Finish - Mating | Gold |
| Shell Material | Polyester |
| Shell Finish | - |
| Primary Material | Plastic |
