5750327-2
CONN RCPT FMALE MINI DIN 6P SLDRManufacturer: TE Connectivity AMP Connectors
Categories: Circular Connector Assemblies
Quality Control: Learn More

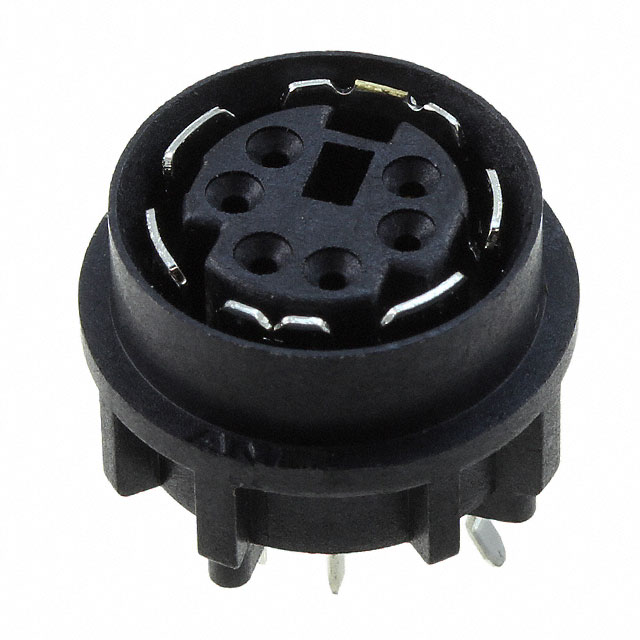

TE Connectivity AMP Connectors' 5750327-2 is a 6-position, keyed receptacle designed for panel mount, through-hole applications. This Mini DIN connector features female sockets with gold contact finish for optimal mating performance and a 1A current rating. Constructed with a brass shell and UL94 V-0 rated material for flammability resistance, it offers robust connectivity. The receptacle incorporates a board lock feature for enhanced mounting stability and a push-pull fastening type for secure engagement. It operates within a temperature range of -55°C to 105°C and has a voltage rating of 30VDC. This component is suitable for use in various industrial and consumer electronics applications requiring reliable signal transmission.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Lock |
| Packaging | Bulk |
| Connector Type | Receptacle, Female Sockets |
| Color | - |
| Voltage Rating | 30VDC |
| Current Rating (Amps) | 1A |
| Mounting Type | Panel Mount, Through Hole |
| Shielding | - |
| Number of Positions | 6 |
| Orientation | Keyed |
| Shell Size - Insert | Mini DIN |
| Operating Temperature | -55°C ~ 105°C |
| Fastening Type | Push-Pull |
| Termination | Solder |
| Ingress Protection | - |
| Cable Opening | - |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | Flange |
| Shell Size, MIL | - |
| Contact Finish - Mating | Gold |
| Shell Material | Brass |
| Shell Finish | - |
| Primary Material | Metal |
